2.4 / 2.8 Inch 320*240 Touch Panel TFT LCD Module Screen Display For Raspberry Pi GPIO Input
$11.14

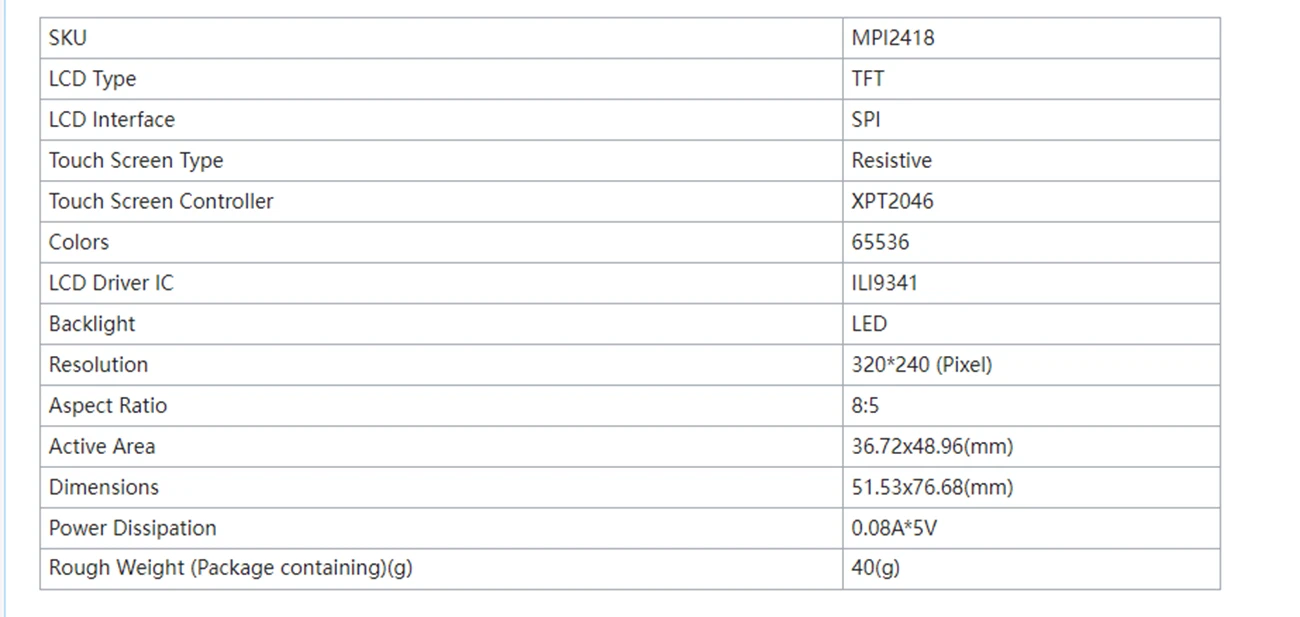

SPECIFICATIONS
Brand Name: CFsunbird
Choice: yes
Display Mode: 320*240
Hign-concerned Chemical: None
Interface: SPI (supports 125MHz SPI signal input)
Model Number: 2.8 inch MHS
Origin: Mainland China
Power consumption: 120ma
Resolution: 320*240,320x240
Size: 2.8inch
Size ratio: 8:5
Touch panel control chip: ILI9341
Touch panel type: Resistive type
Type: TFT
Working temperature: -20~70 (°C)
is_customized: Yes
semi_Choice: yes

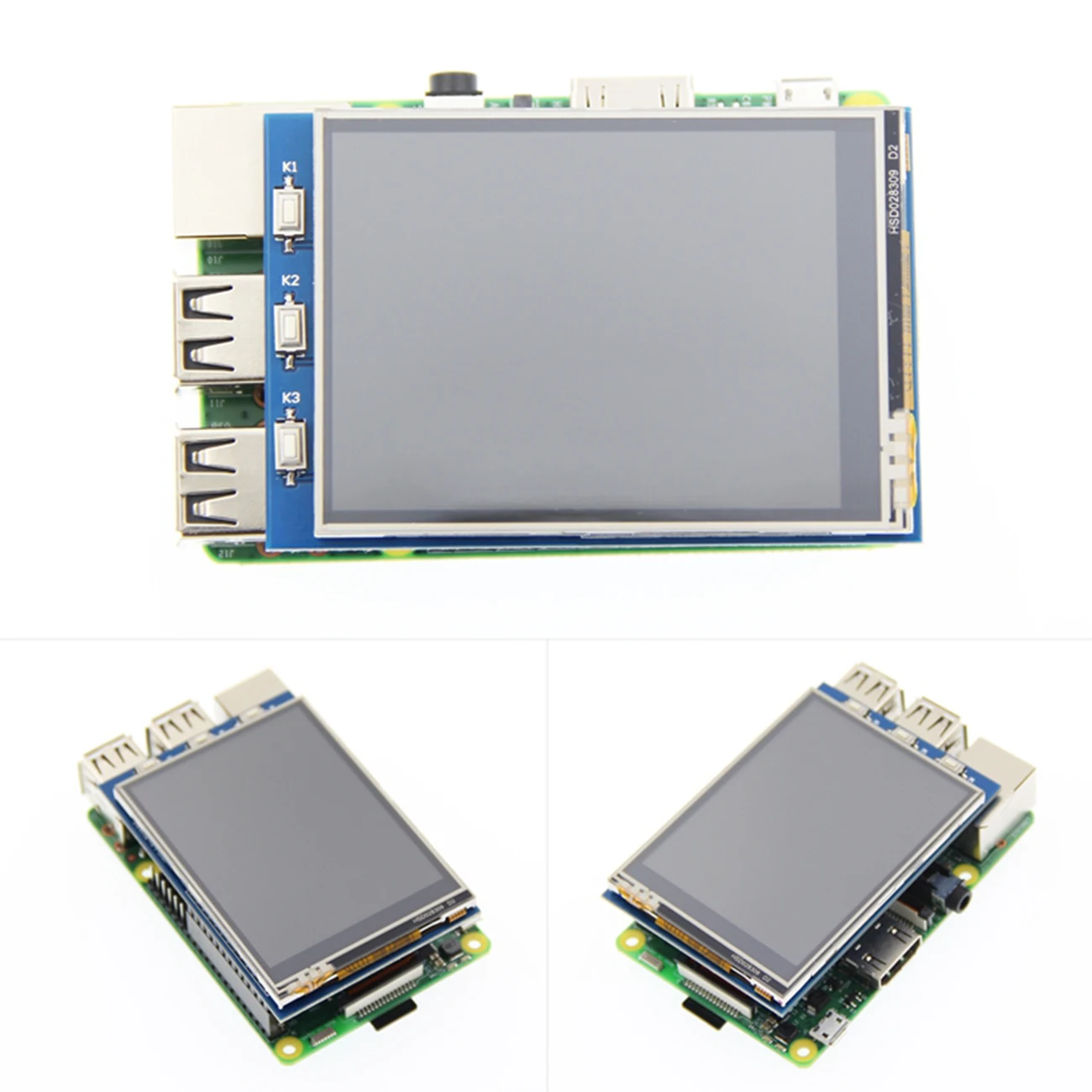

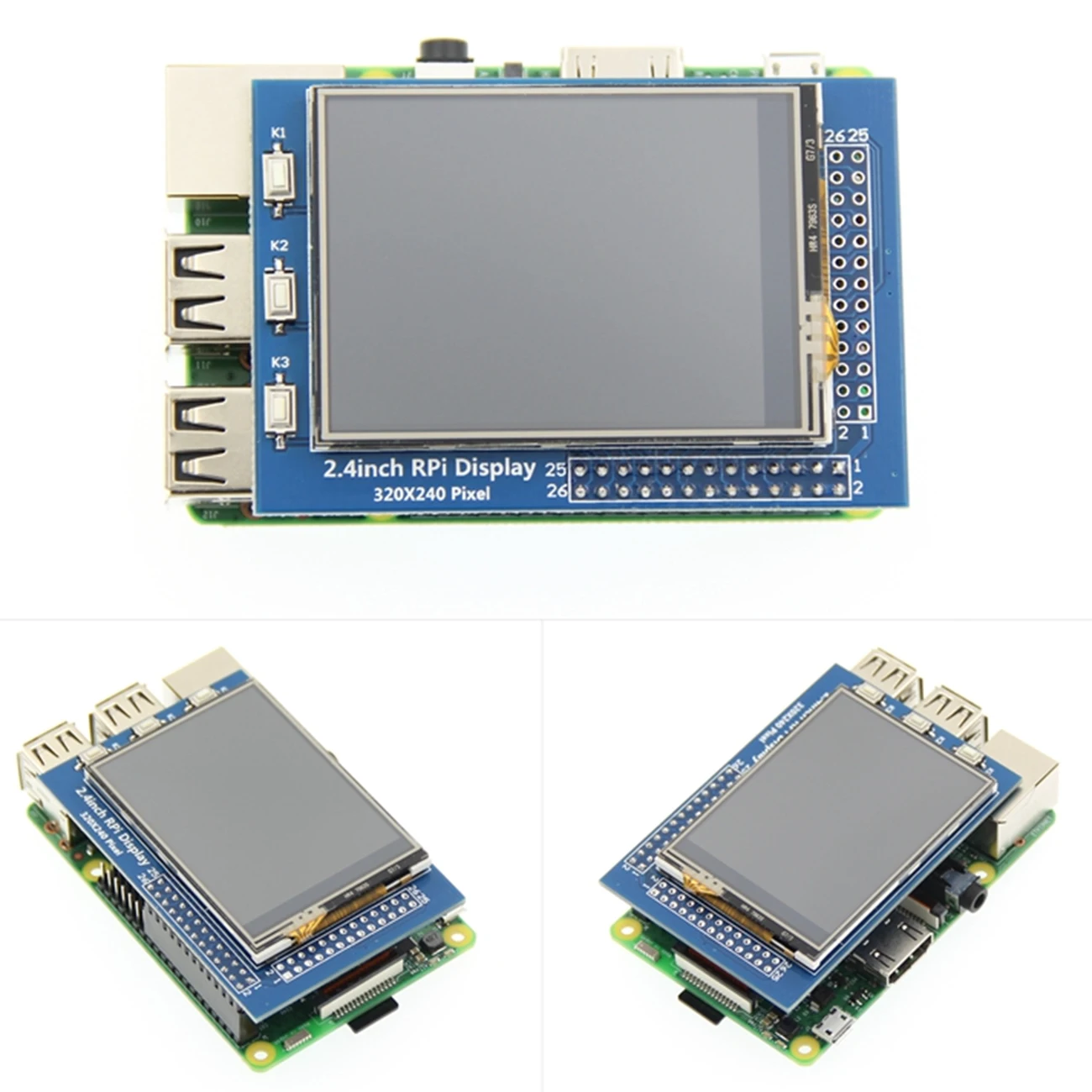

Support full range of raspberries such as PI3B+/PI3/PI2/ZERO
Size: 2.4inch / 2.8inch
Type: TFT
Interface: SPI
Resolution: 320*240 (Pixel)
Driver IC: ILI9341
Touch panel type: resistive touch

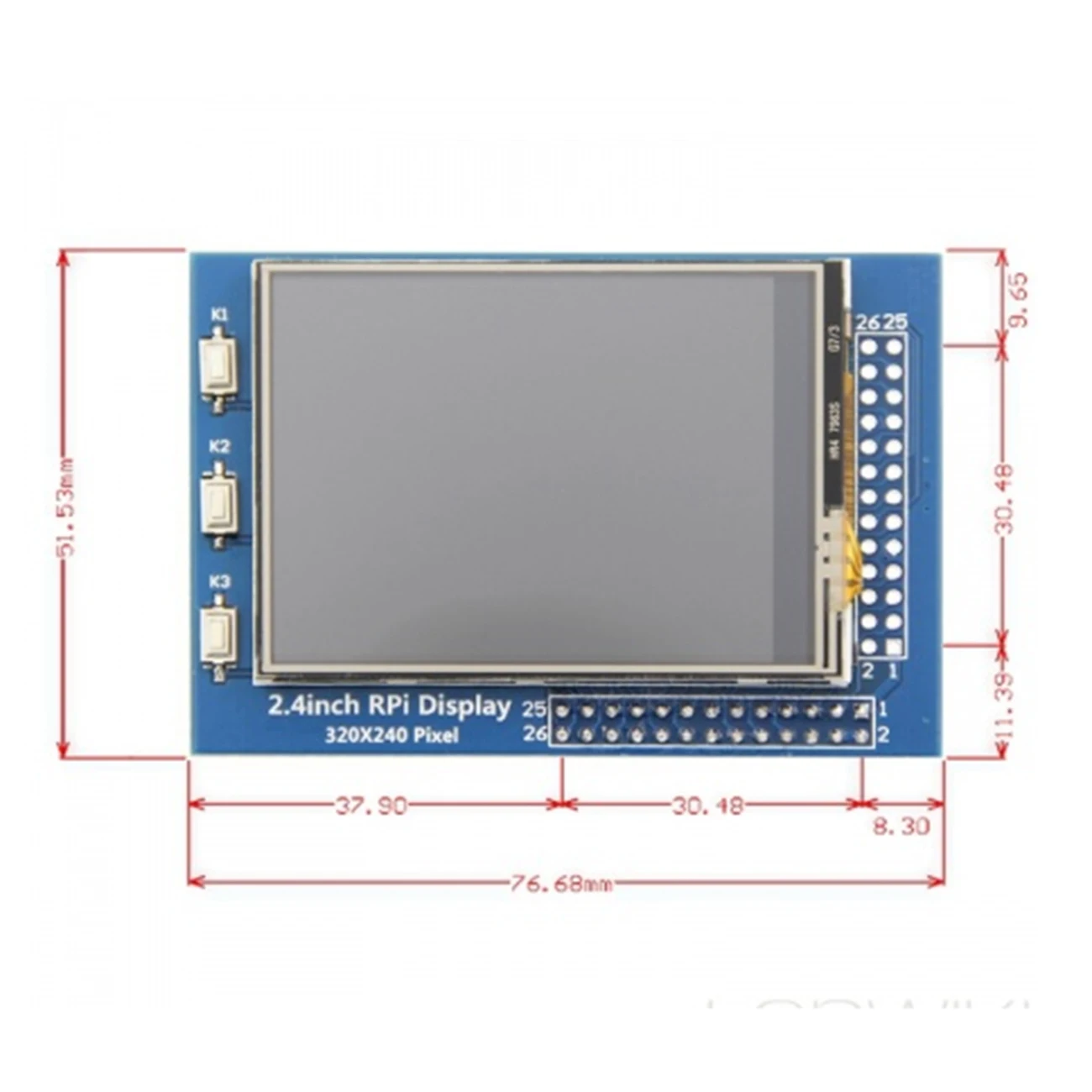

Effective display size: 43.2x57.6 (mm)

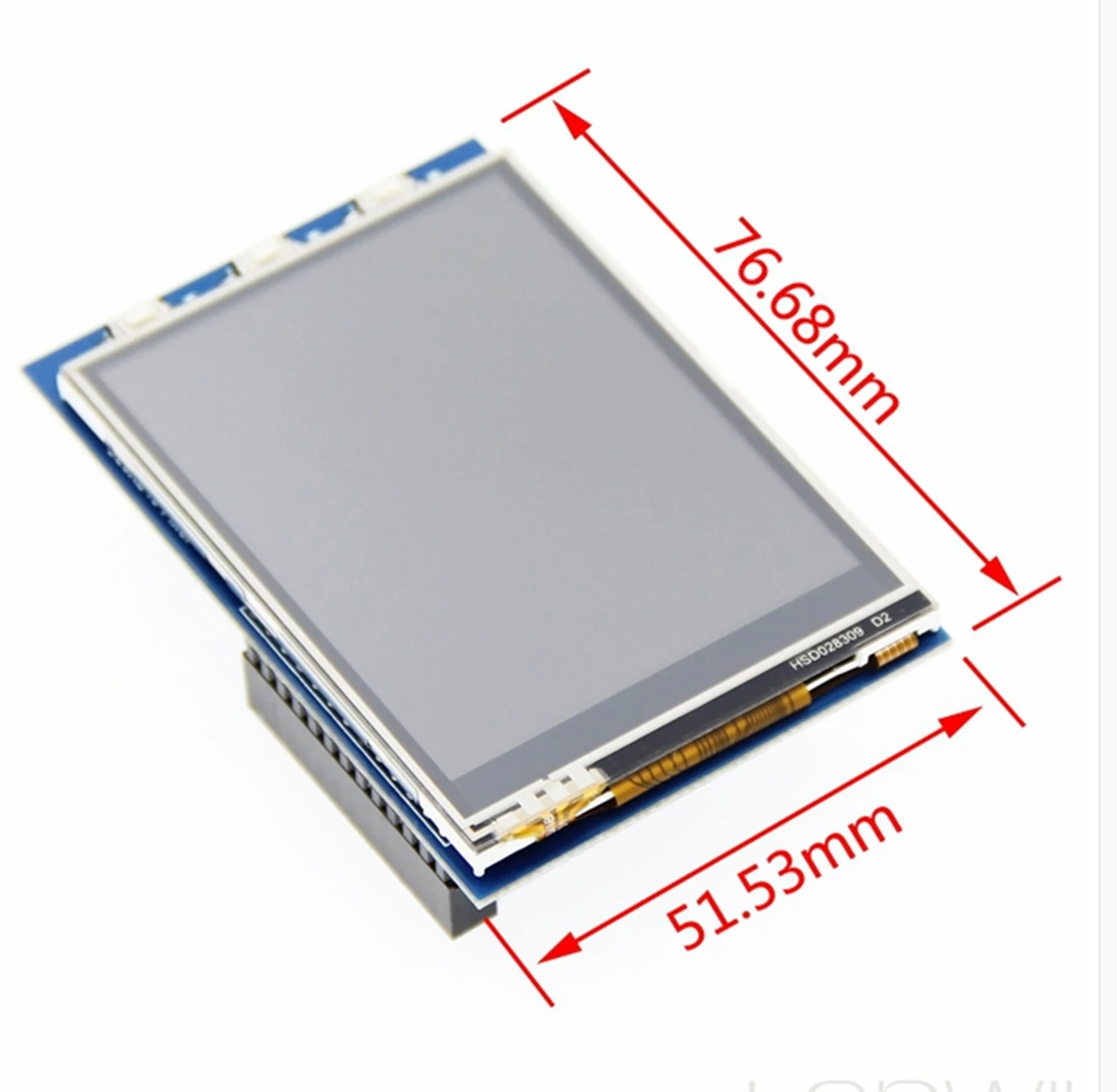

PCB backplane size: 51.52x76.68 (mm)
Product weight: 25 (g)

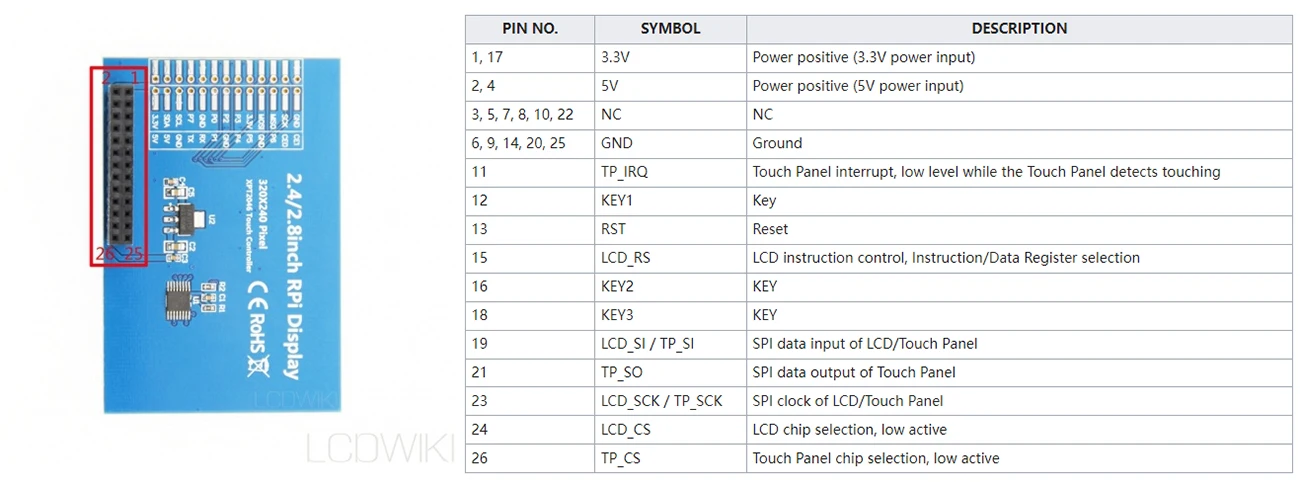

Pin number identification description
1, 17 3.3V power supply (3.3V power input)
2, 4 5V power supply (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Power Ground
11 TP_IRQ touch panel interrupt, detected low when the touch panel is pressed
18 LCD_RS Instruction/Data Register Selection
19 LCD_SI / TP_SI LCD display / SPI data input of touch panel
21 TP_SO touch panel SPI data output
22 RST reset
23 LCD_SCK / TP_SCK LCD display / SPI clock signal of touch panel
24 LCD_CS LCD chip select signal, low level select LCD
26 TP_CS touch panel chip select signal, low level select touch panel
