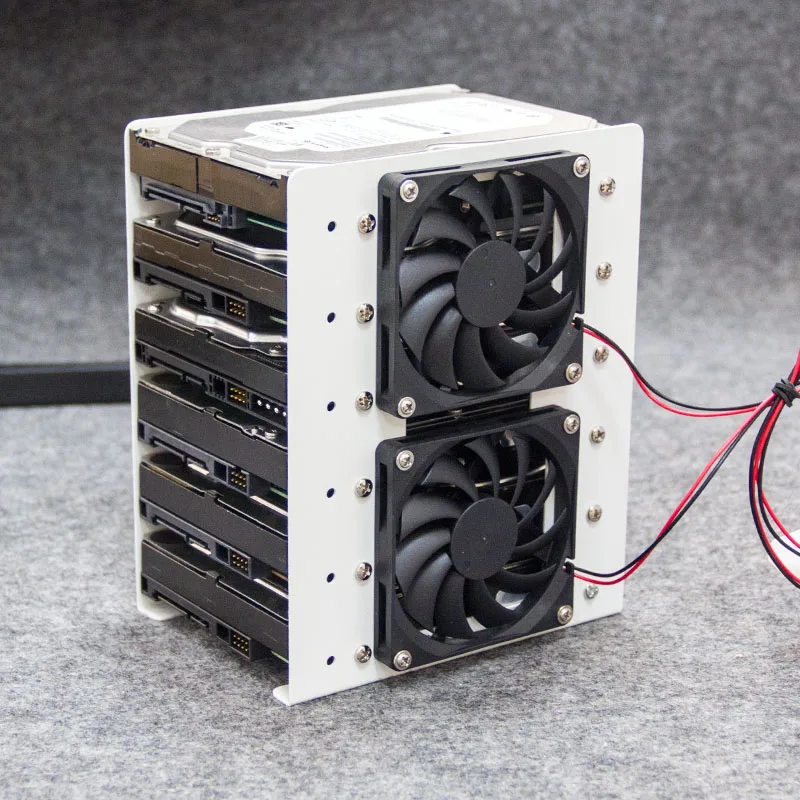

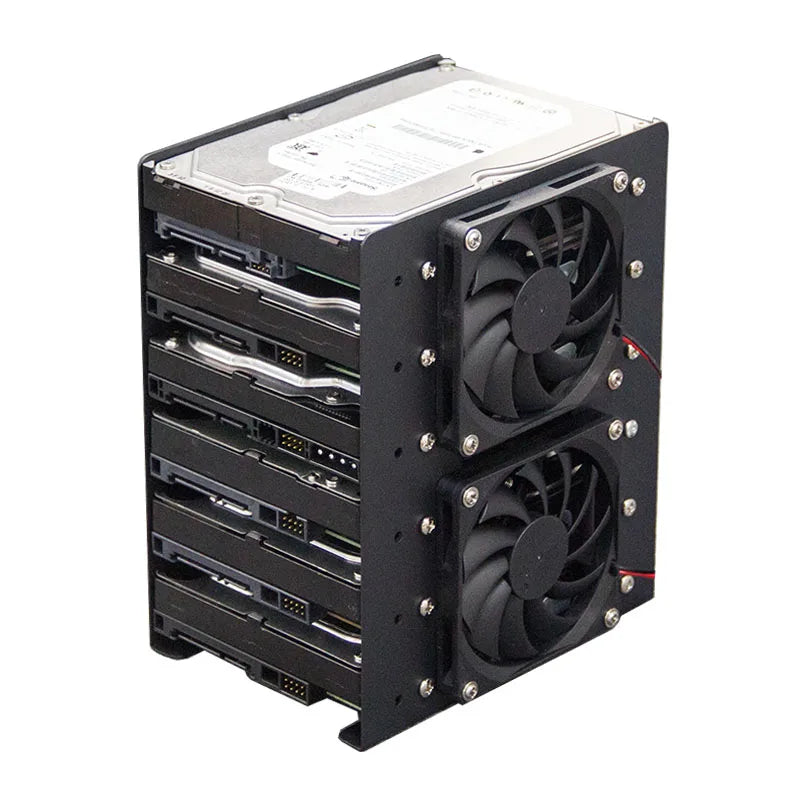

Chassis built-in 6F mechanical hard disk bracket metal 6x3.5 hard disk superimposed expansion fan cooling For PC case
$51.39
SPECIFICATIONS
Brand Name: DEBROGLIE
Case Size: NO
Case Weight: 0.01
Choice: yes
Form Factor: ATX
High-concerned chemical: None
Material: IRON
Model Number: TL90
Origin: Mainland China
Power Model: SFX
RGB Support: NO RGB
Type: Rack
semi_Choice: yes

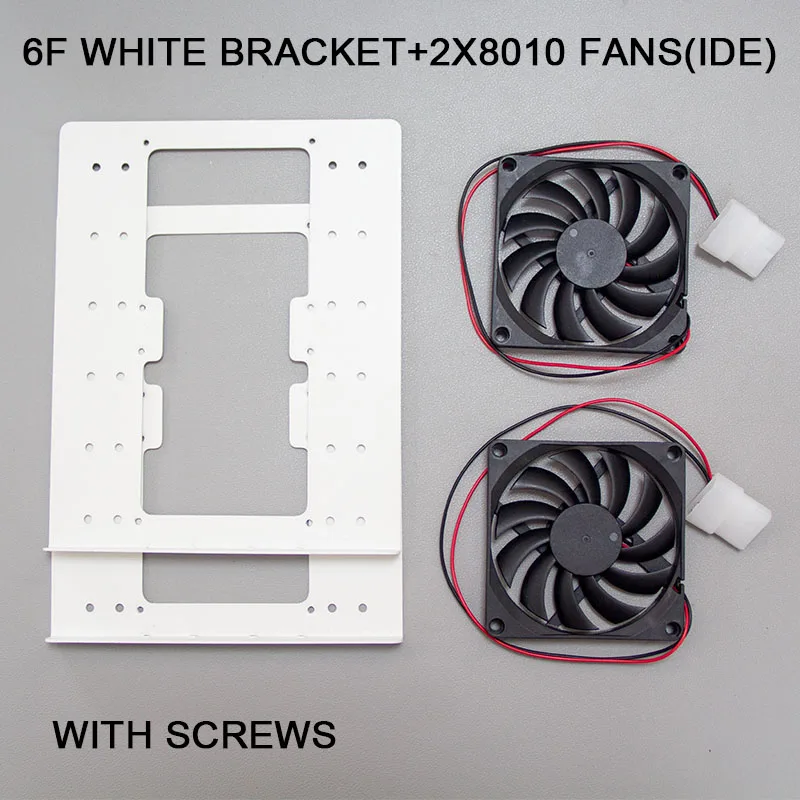

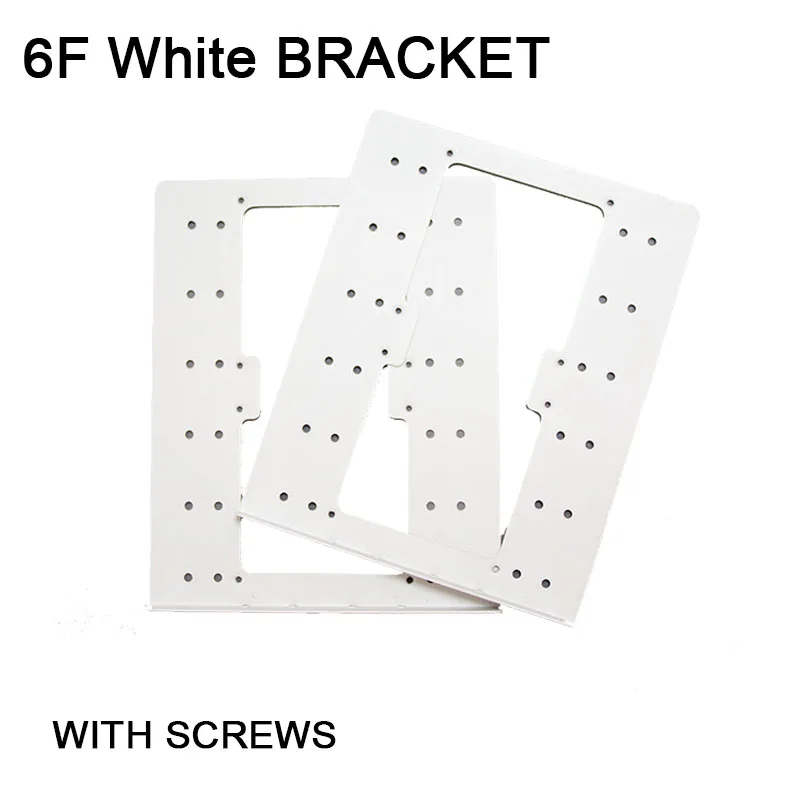

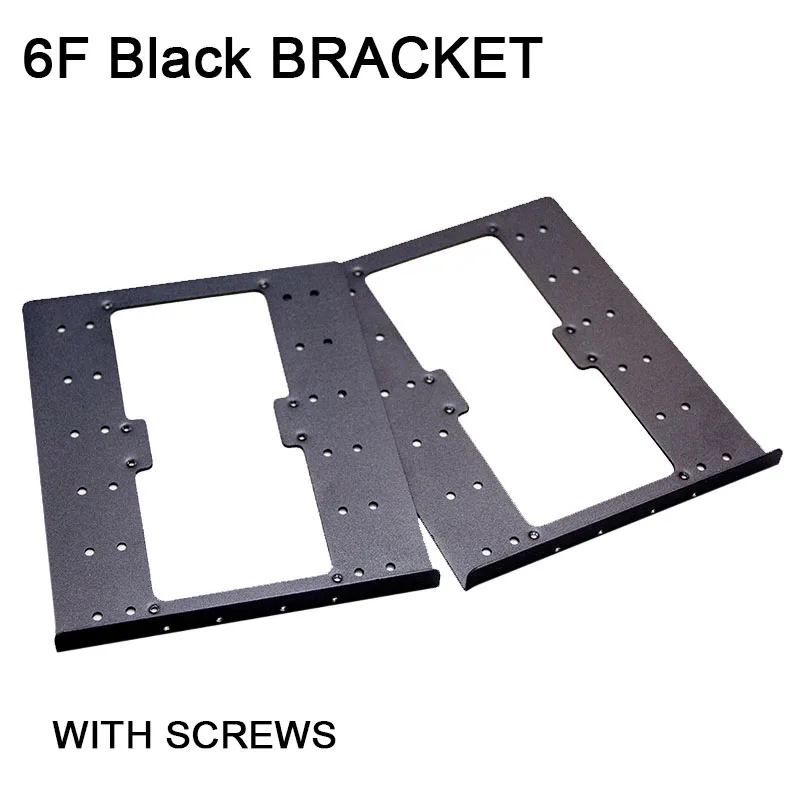

Name: T805 6F L-type hard drive bracket
Material: galvanized sheet
Features: Hard disk storage, storage, beautiful and tidy, with screw holes at the bottom, can be installed on the chassis

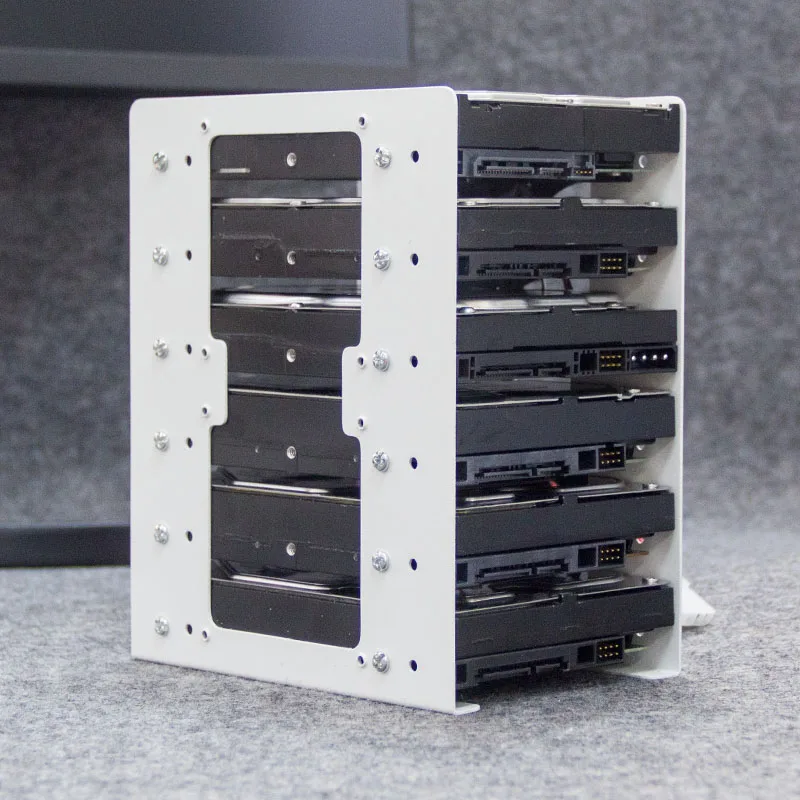

Hard disk: 6x 3.5-inch hard disks available

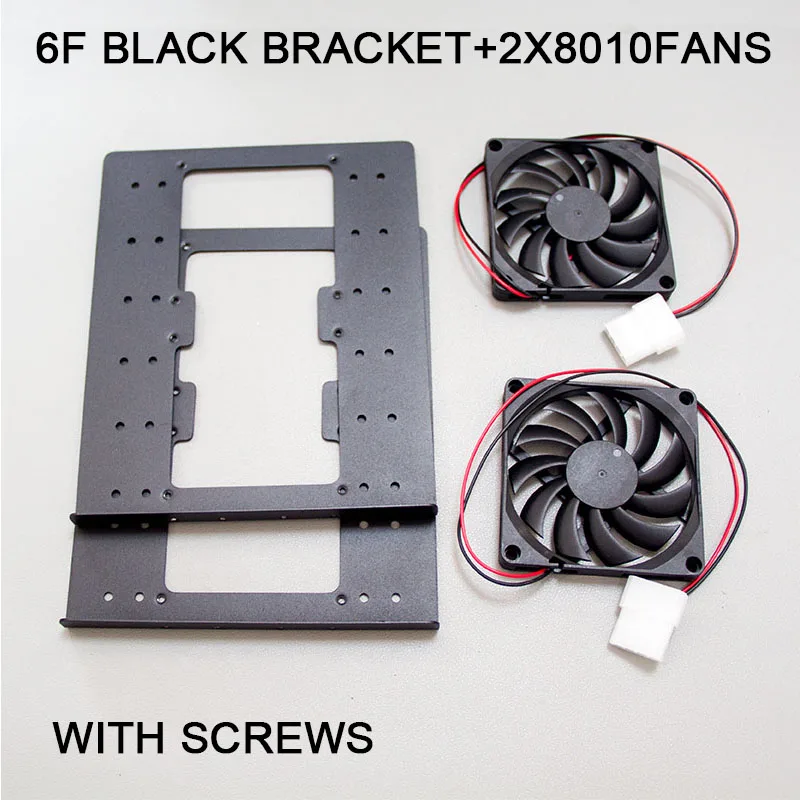

Fan: can install 2X8010 fan
Colour: Black/White
Thickness: 1mm
Accessories: Screws
size
Dimensions after installing the hard disk: 146(L)x106(W)x183(H)mm
Single side size: 146mmx183mm L-shaped protrusion width is 15mm
The bottom hole distance is 44mm, and the bottom hole can be installed on the 3.5 hard disk position of the chassis.
The distance between the upper and lower screw holes: 3cm
This bracket has no partition, and the hard disk is installed directly with the side plate.
Note: No hard disk is included, pictures are for display only
