SPECIFICATIONS

Battery Included: No

Brand Name: Aideepen

Choice: yes

DIY Supplies: Electrical

High-concerned chemical: None

Model Number: DSO183

Origin: Mainland China

Features:

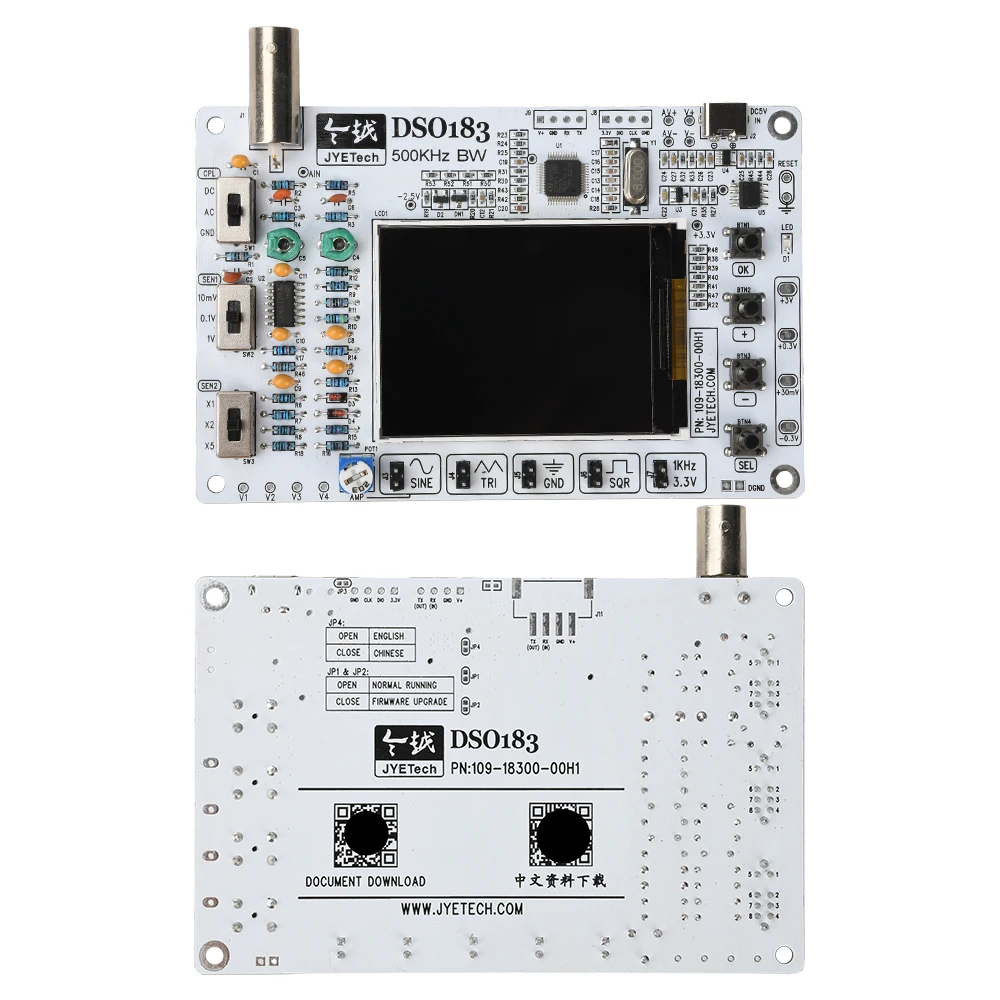

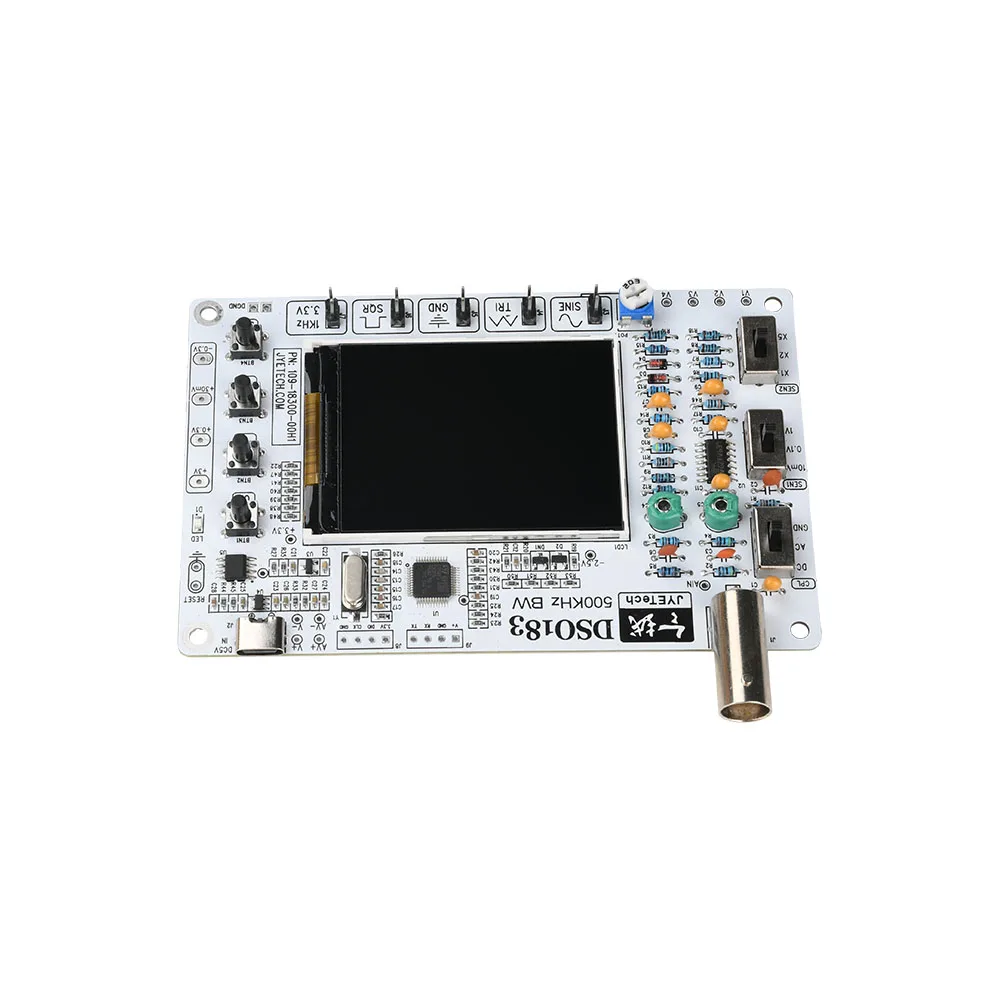

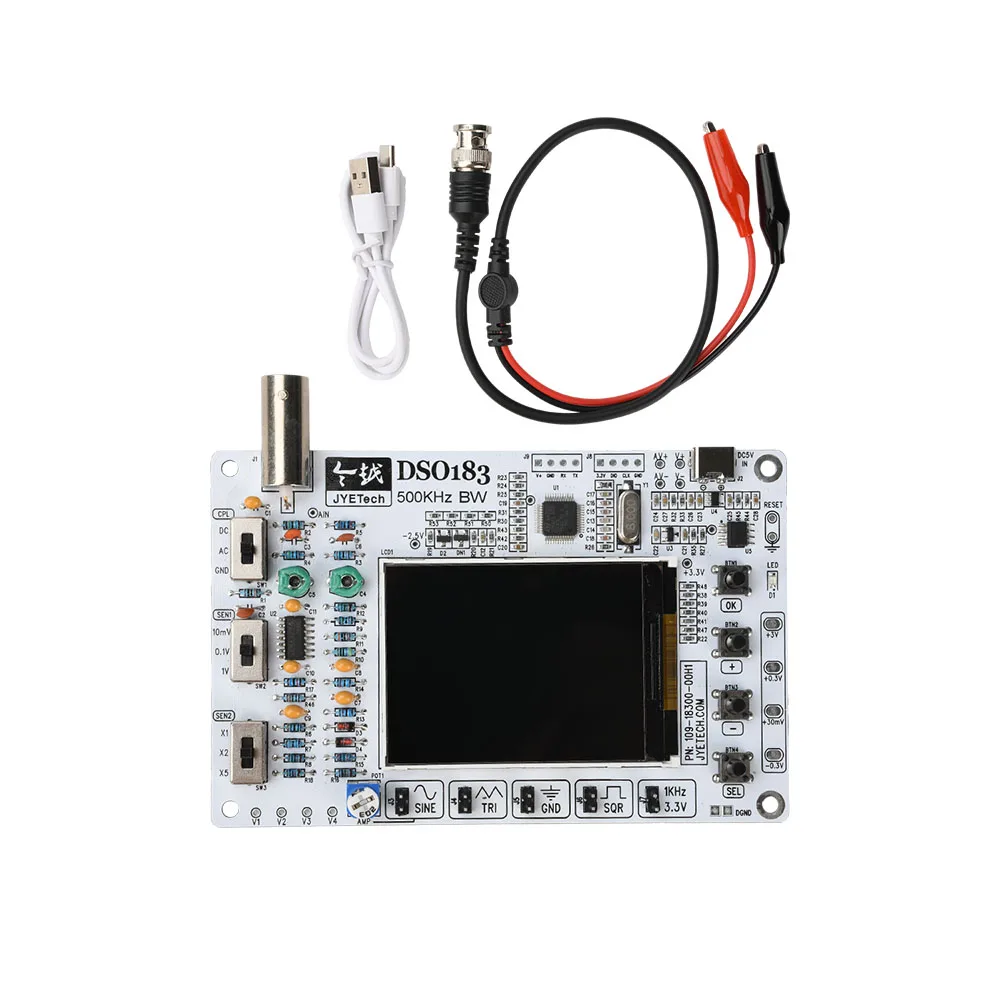

1. Single-board structure design: compact integrated structure, convenient installation, high stability, suitable for a variety of experimental environments

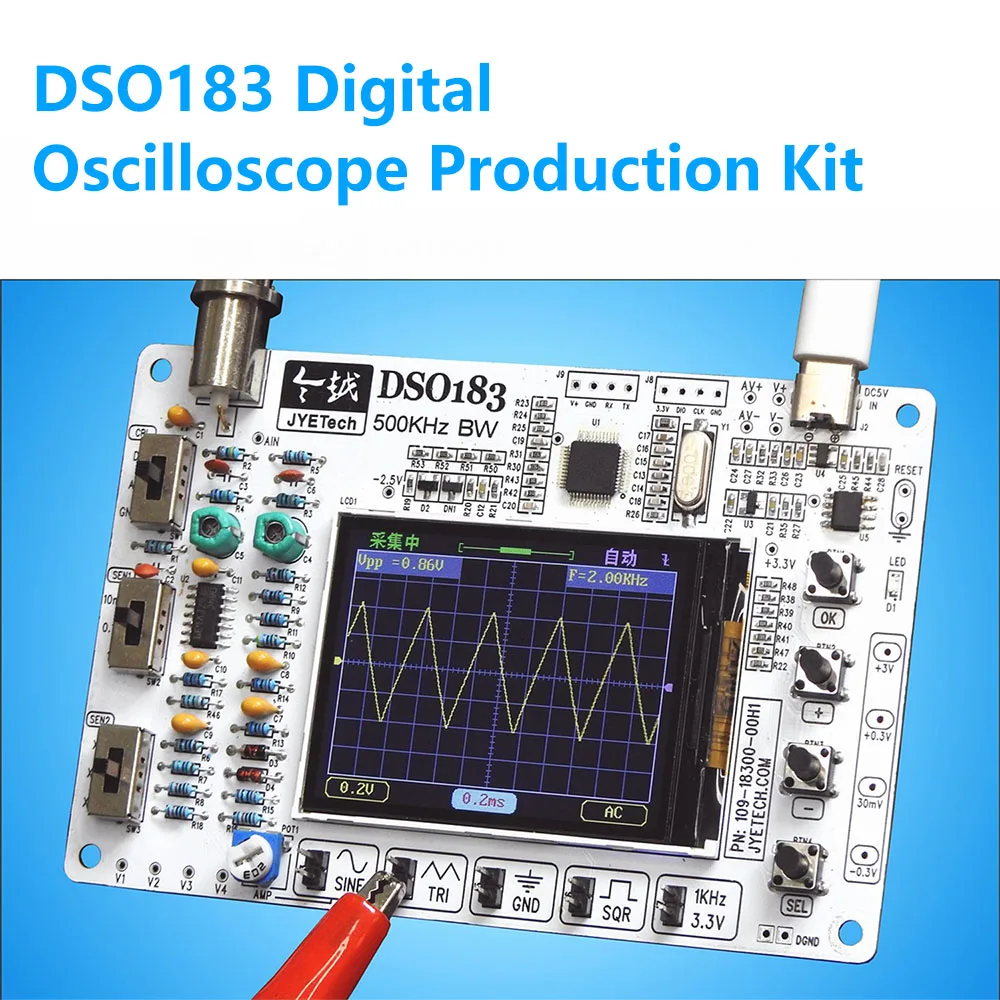

2. Built-in signal generator: integrates sine wave, triangle wave and other waveform output functions to meet diversified testing needs.

3. Waveform storage and recall: supports waveform saving and quick call-out function, which is convenient for comparative analysis and repeated use.

4.500KHz high bandwidth: high-frequency response capability, accurately capture the details of complex signals.

5. Ideal tool for electronic enthusiasts: easy to operate, powerful, a powerful assistant for learning electronic technology and exploring the world of circuits.

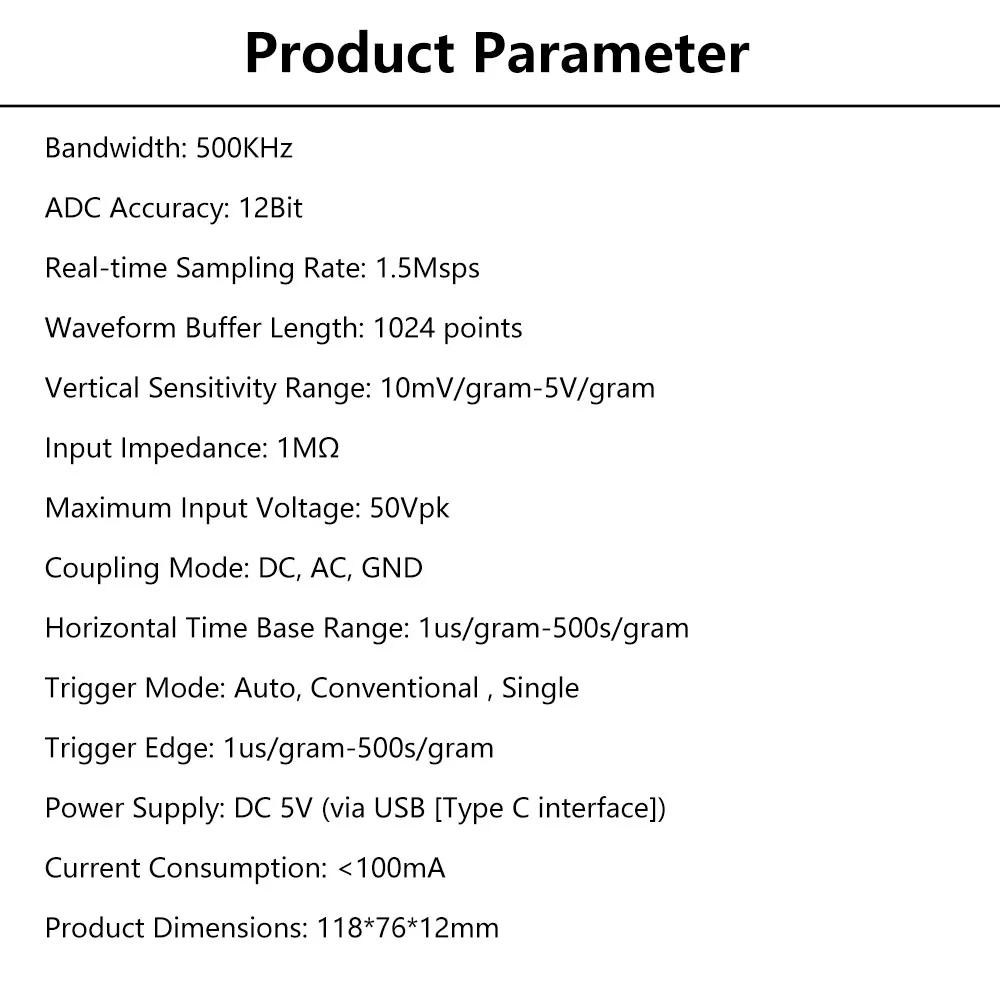

Parameter:

Bandwidth: 500KHz

ADC Accuracy: 12Bit

Real-time Sampling Rate: 1.5Msps

Waveform Buffer Length: 1024 points

Vertical Sensitivity Range: 10mV/gram-5V/gram

Input Impedance: 1MΩ

Maximum Input Voltage: 50Vpk

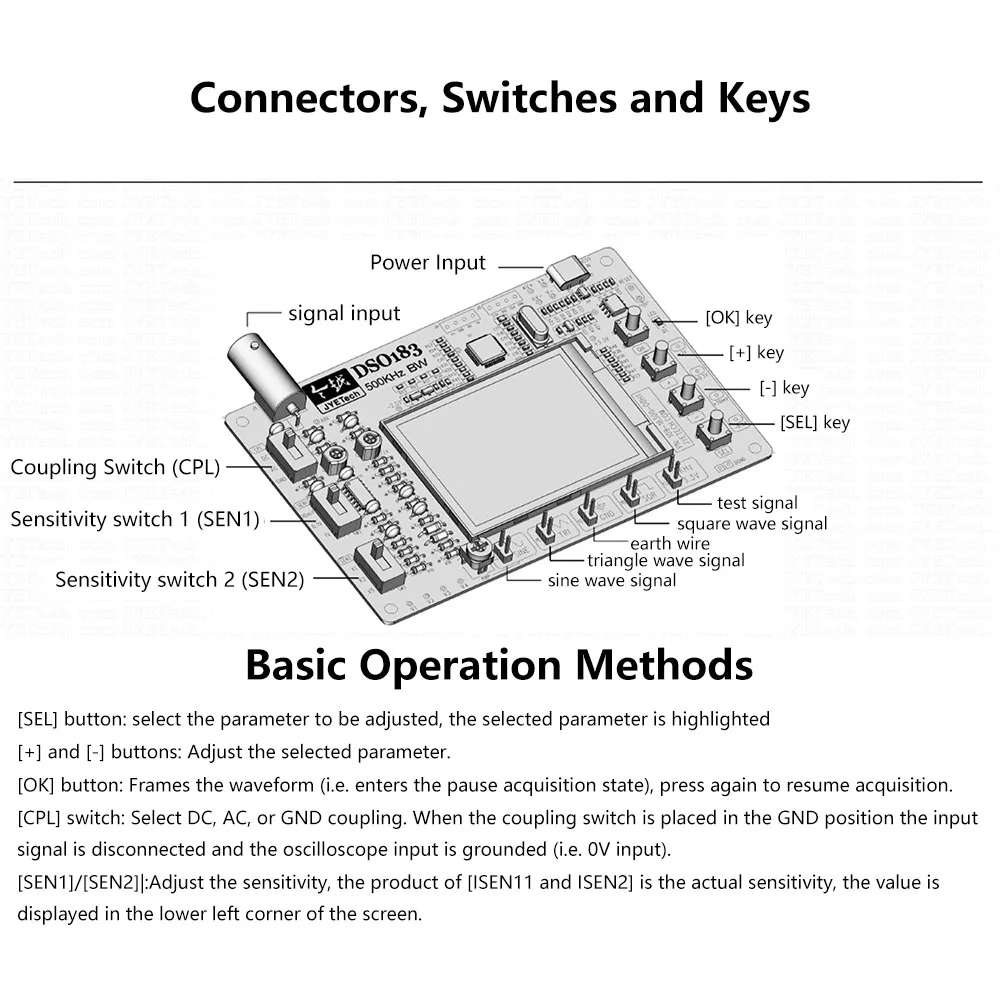

Coupling Mode: DC, AC, GND

Horizontal Time Base Range: 1us/gram-500s/gram

Trigger Mode: Auto, Conventional , Single

Trigger Edge: 1us/gram-500s/gram

Power Supply: DC 5V (via USB [Type C interface])

Current Consumption: <100mA

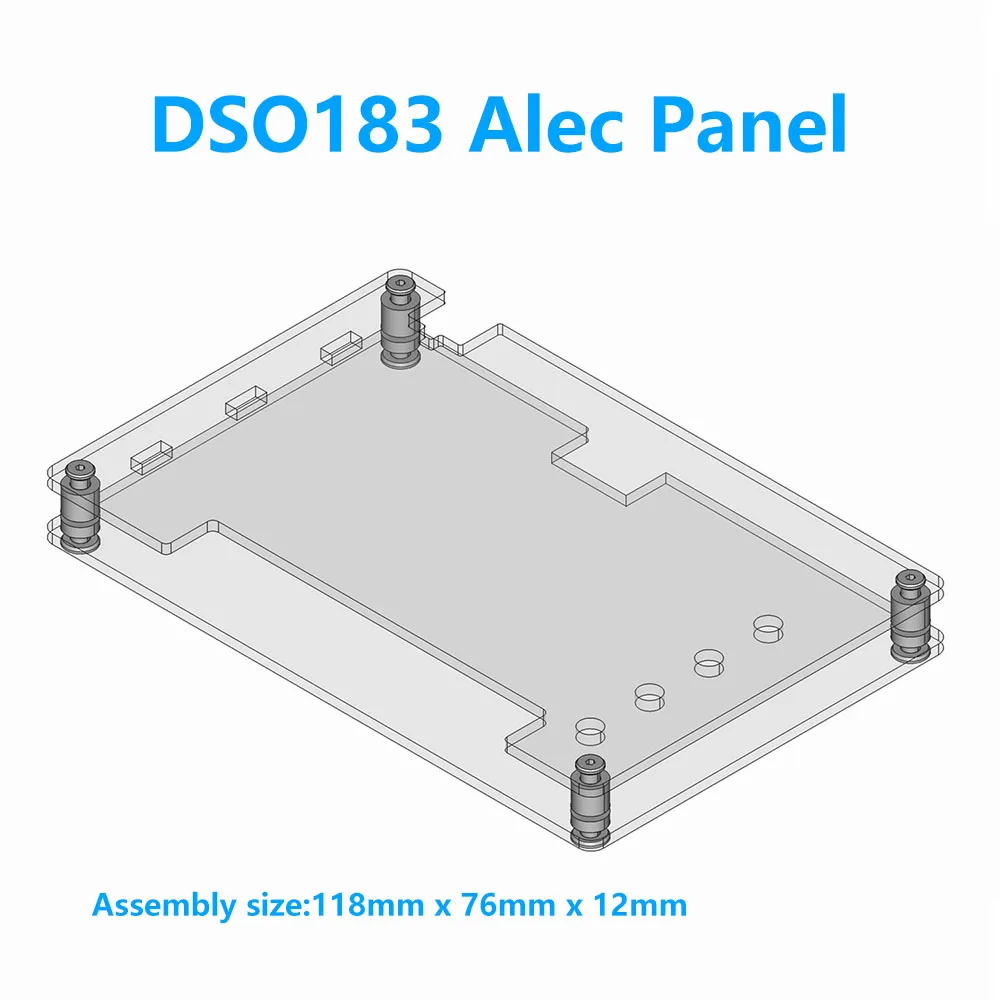

Product Dimensions: 118*76*12mm

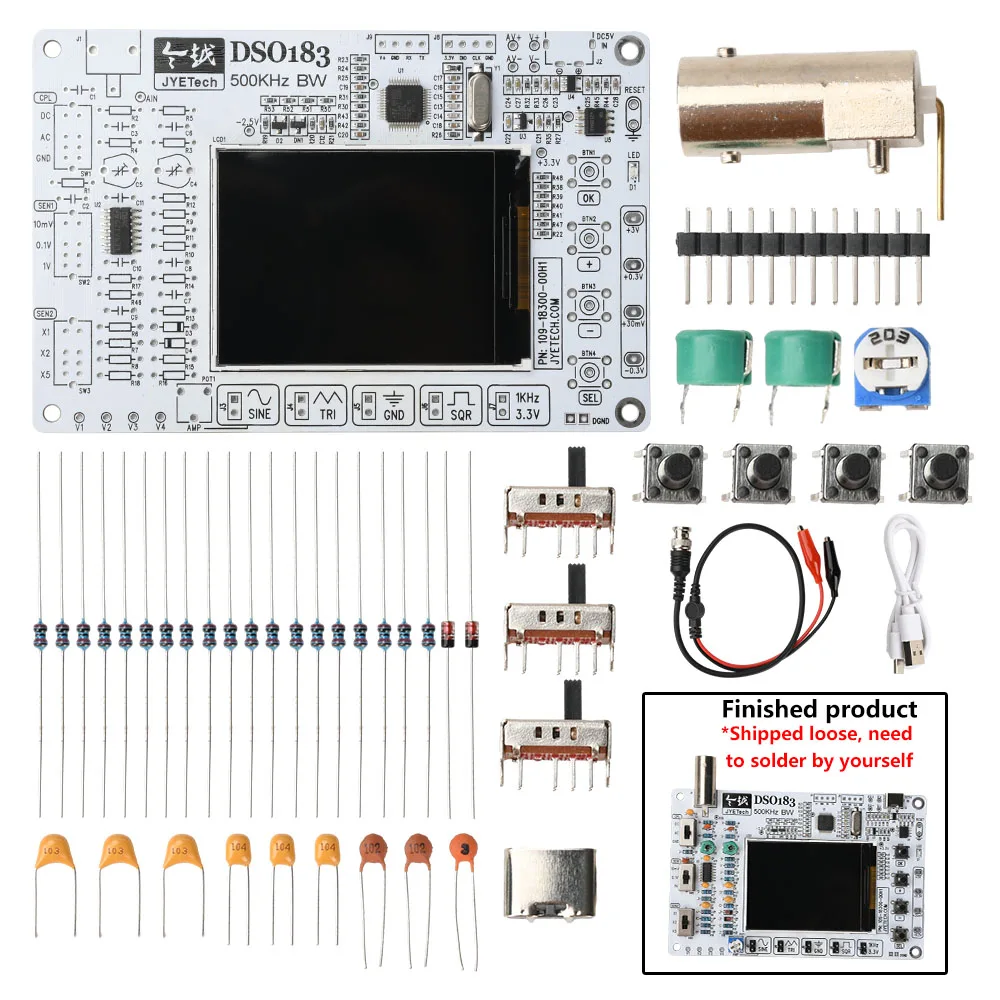

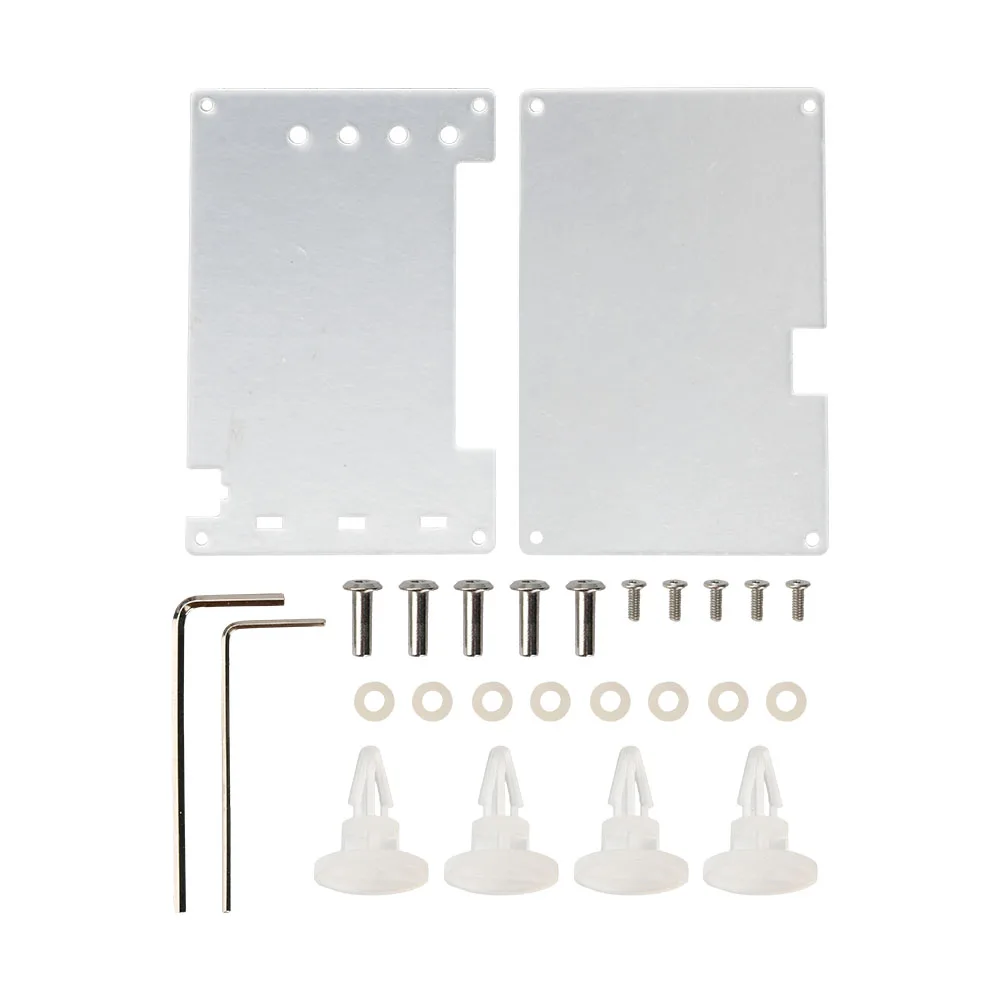

Package include:

DIY loose parts*1
