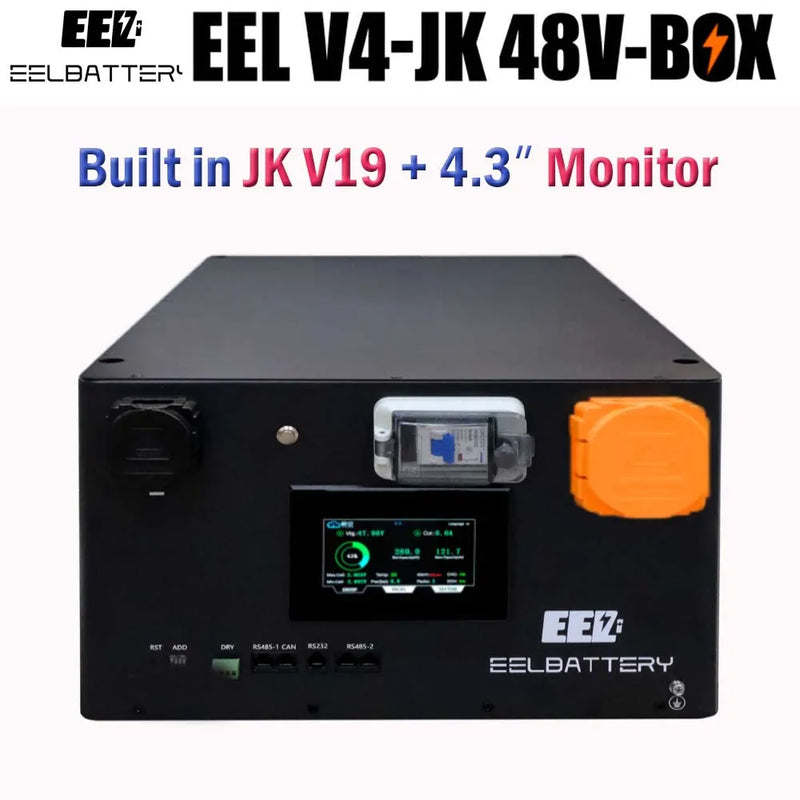

EEL 48V 16S DIY Battery box kit for cells 280 320Ah Server Rack with JK BMS 2A Active Balancer Energy Storage Stackable Case
$1,389.99
SPECIFICATIONS
Accessory Type: Battery Accessories
Active Balance Current: 2A

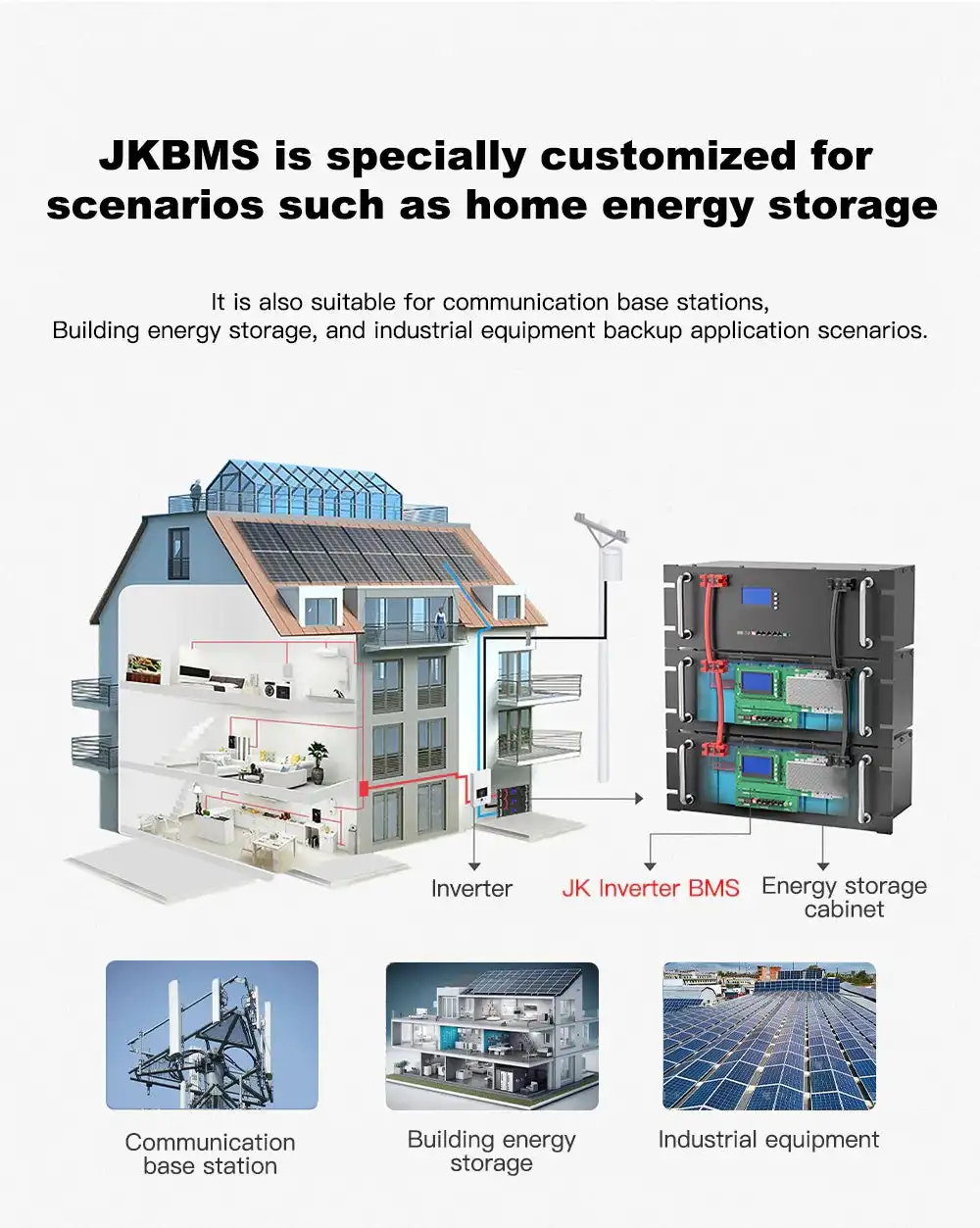

Application: Solar energy household system

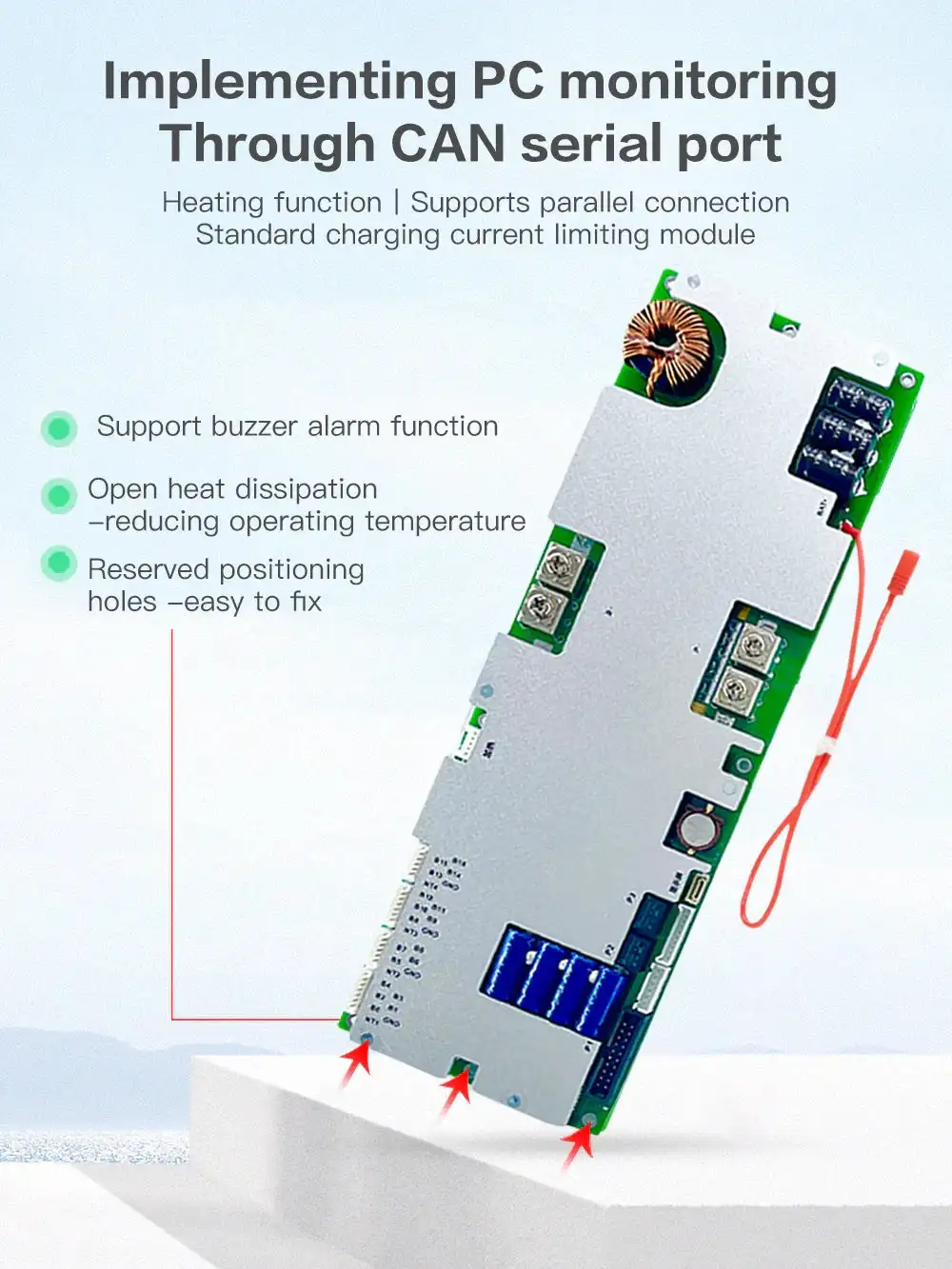

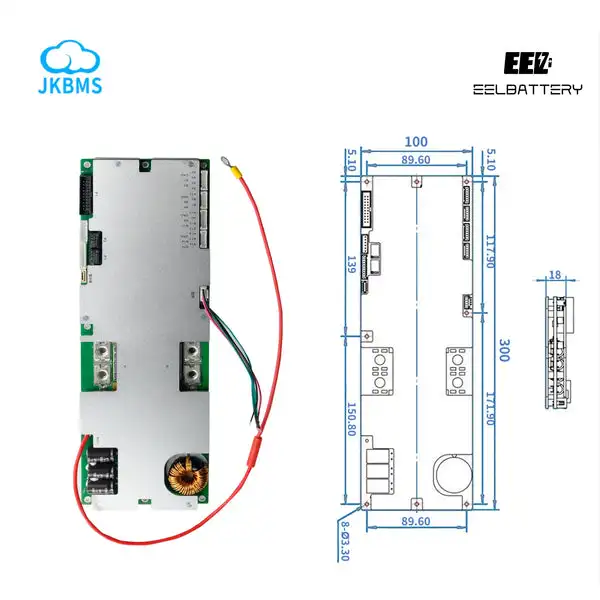

BMS: JK Inverter BMS PB2A16S15P/20P
Battery Included: No
Battery Pack Type: Stackable
Brand: EEL BATTERY
Brand Name: CNEEL
Certification: CE
Charger included: N
Communication: CANBUS,RS485,Bluetooth
Continuous current: 200A
Hign-concerned Chemical: None
Material: Stainless Steel
Model: EEL JK BOX-LCD
Model Number: EEL 48V Battery Box
Nominal Voltage: 48V/51.2V
Origin: Mainland China
Screen size: 4.3 inch
Size: 415*700*263mm
Weight: 26kg
suit for battery cells: 280Ah 302Ah 304 306 314 Lifepo4 battery pack

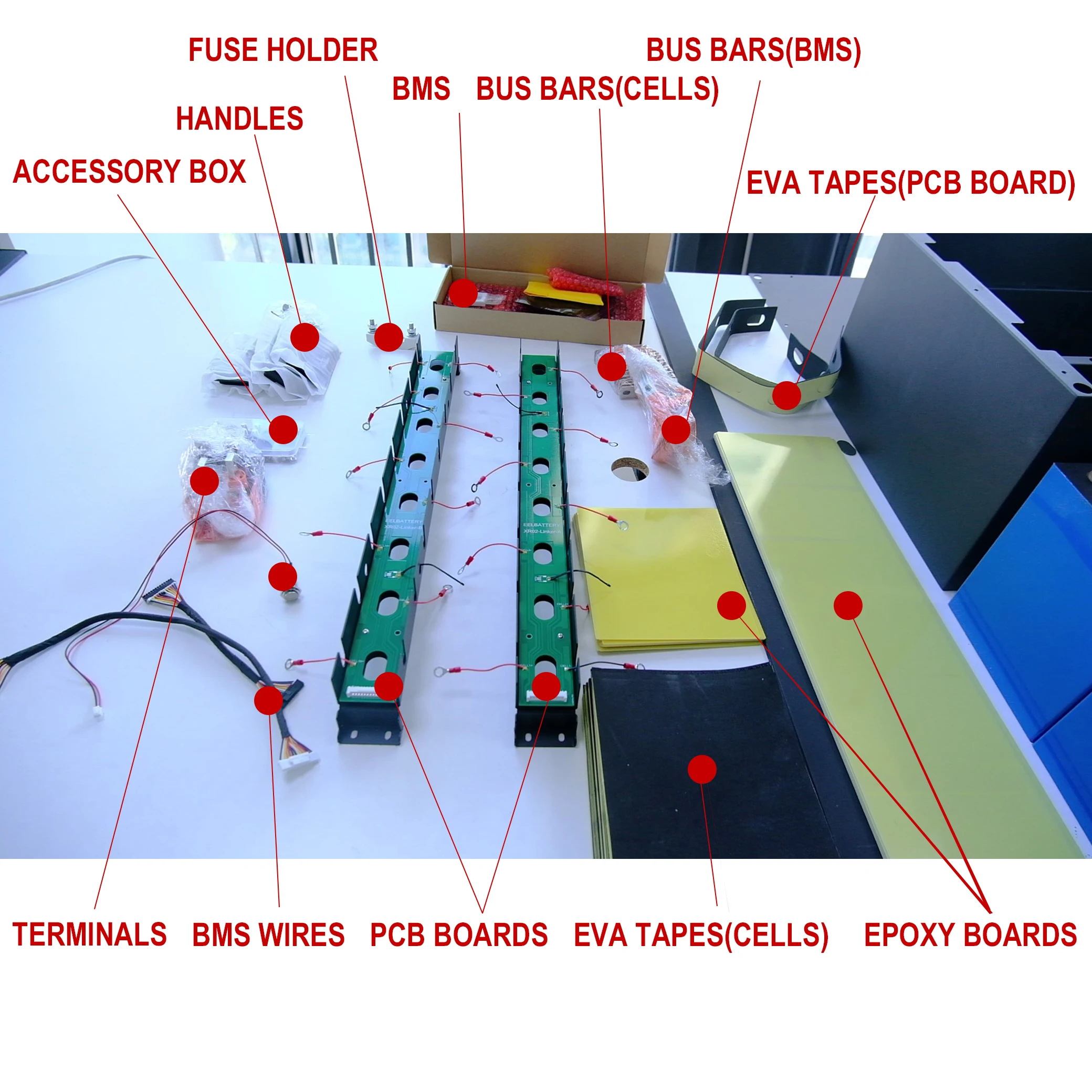

Parts List (No battery cells)

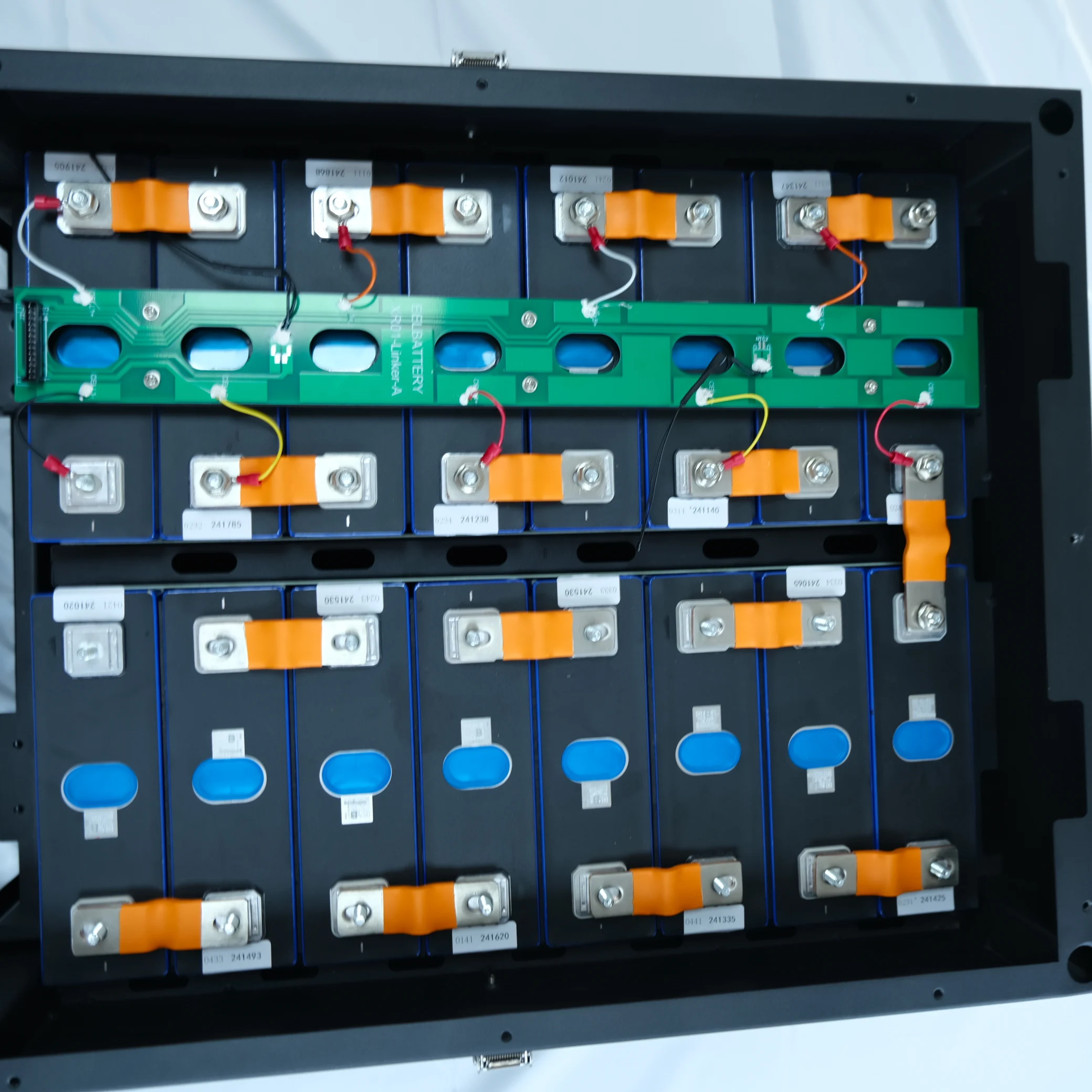

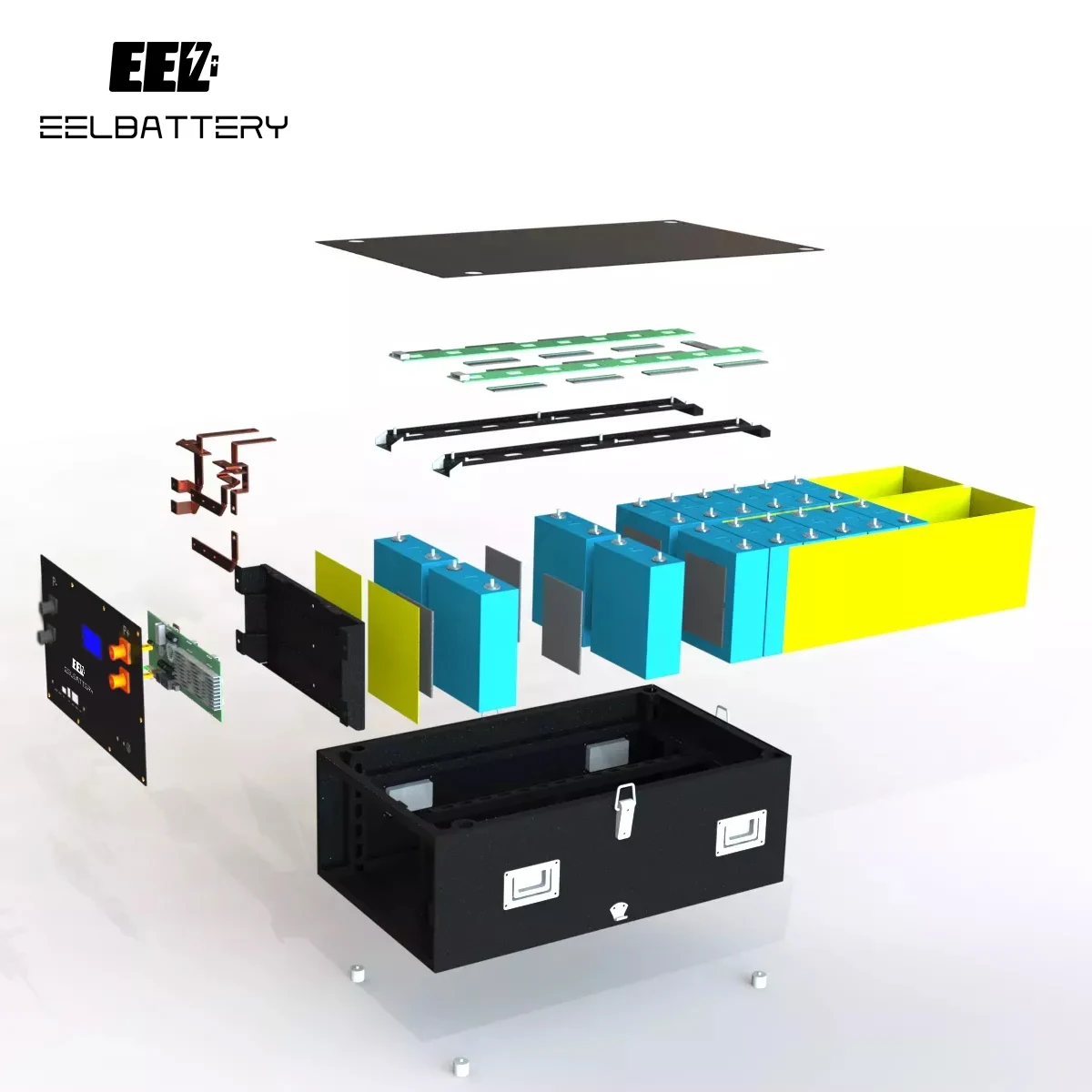

1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
10 * Epoxy board(Between cell and the case)

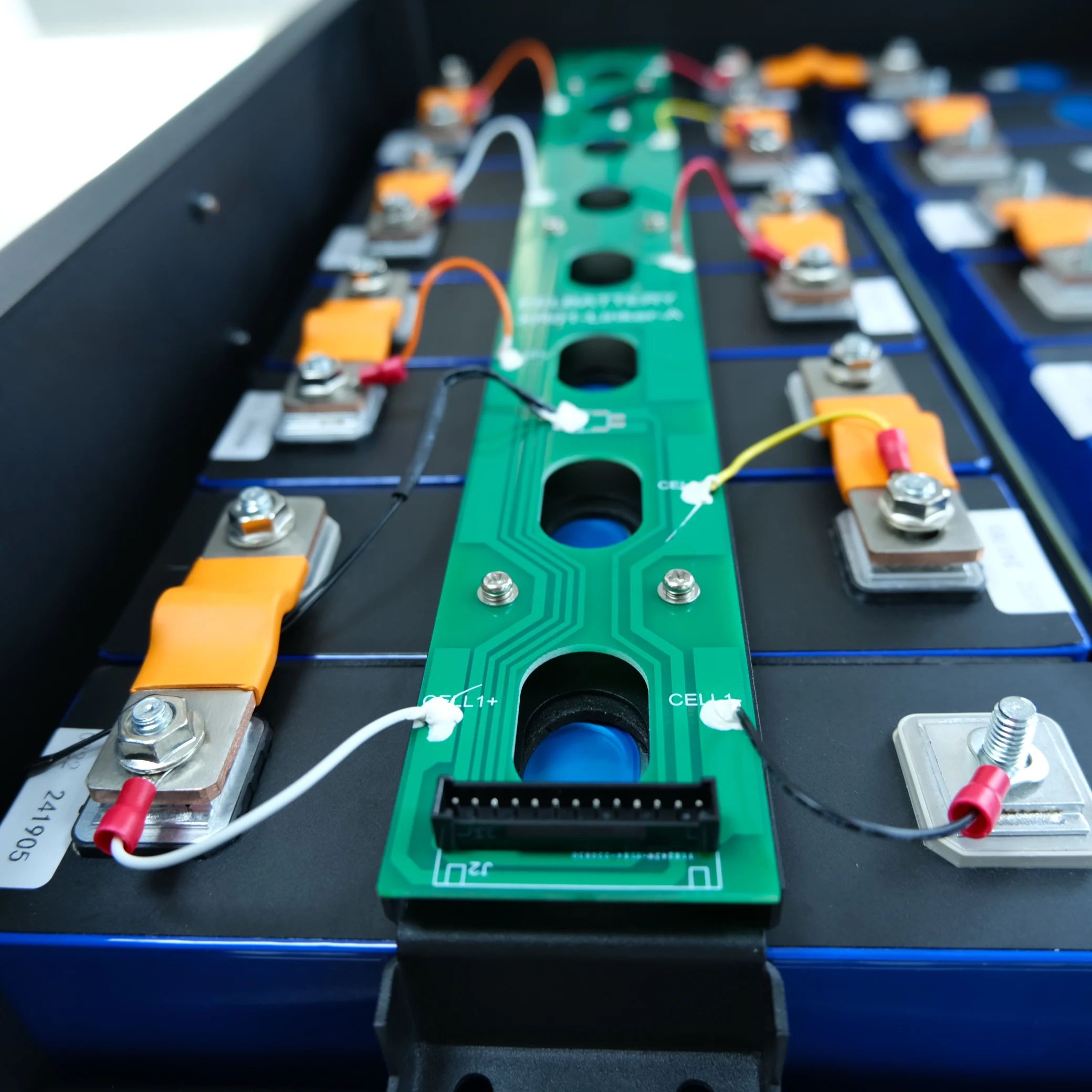

2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S BMS+2*BMS wires+1*adapter
4 * Battery Terminals (P+ Terminal and P- Terminal)
5* Long Flexible busbars (BMS connection)

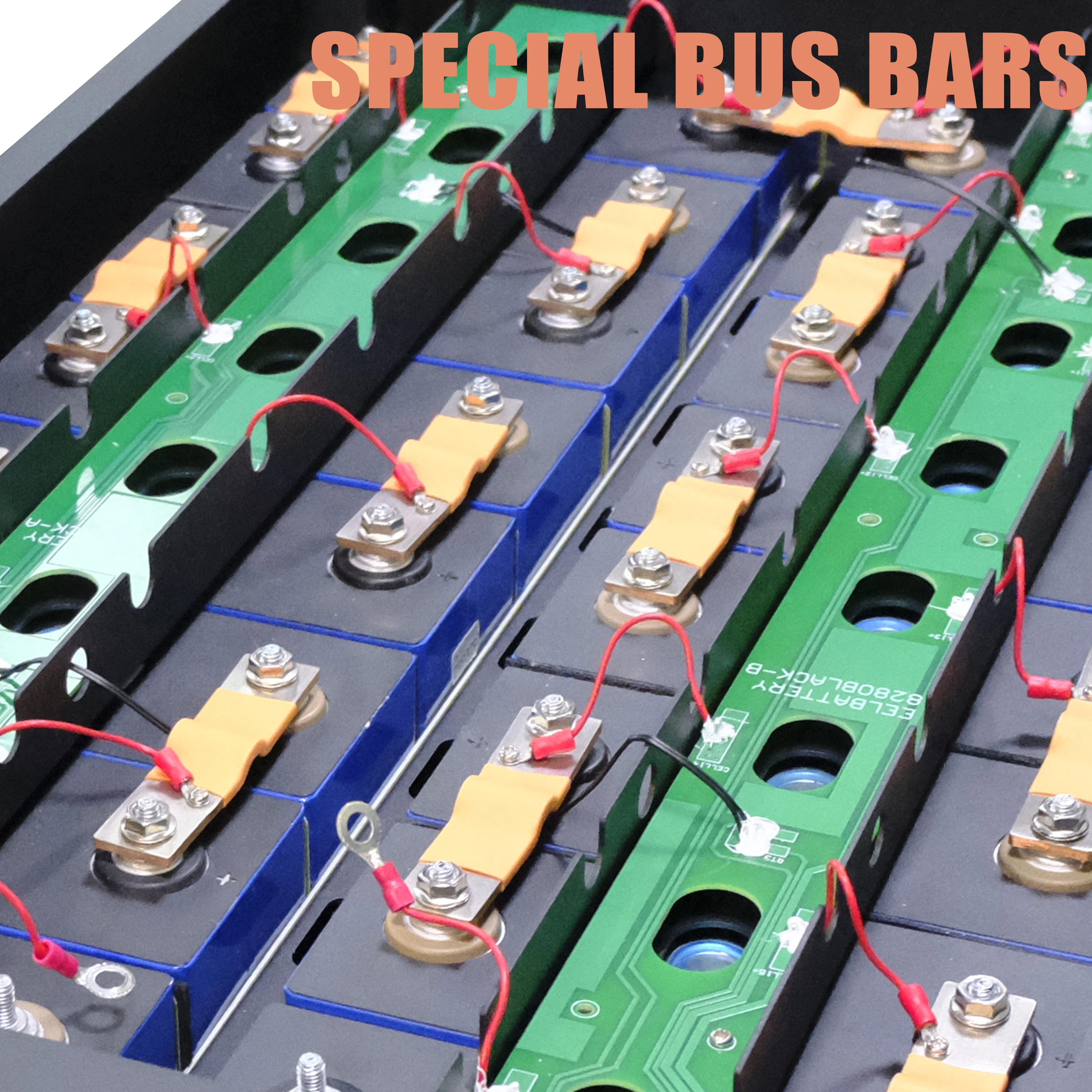

15 * Flexible busbars (Cell connection)
4 * Handle
4 * Upper and Lower Latch lock
26 * EVA Tape (Between cells)
FAQ
Q： What BMS is in the 48V battery box?

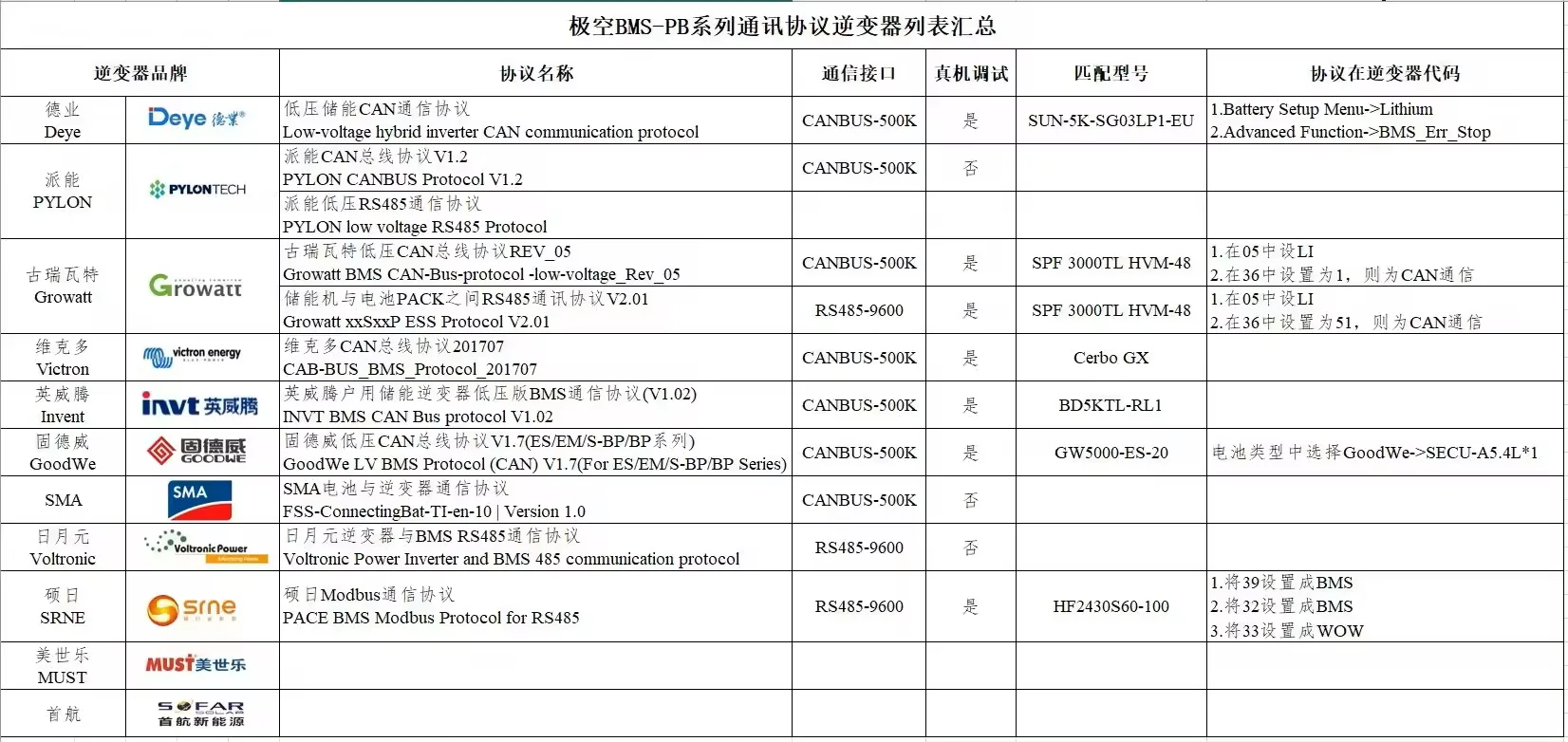

A: We use the JK-PB2A16S20P,JK-PB2A16S15P BMS in the box with CAN,RS485,Bluetooth Communications.
Q: If I want to build a 48V server rack system, what should I choose?
A: It depends on how much capacity you want, our battery box can be stacked up to 15 sets.
Q: Can I buy the completed 48V server rack battery?
A: Sure, because our battery box does not include the cells, please leave a message to us if you want the completed battery system.
Q: How to set up the system?
A: The battery system can be connected to PC, and you can set and manage the whole system on your computer.
Q: I have my own logo, can I print my logo in the battery pack?
A: Yes, we accept customizing the logo, but need a large amount, if you like a sample, welcome to contact us.
Q:Does the 48V kit contain batteries cells?
A: this link do not include the battery cells . if you wanna it, Batteries cells can be purchased separately.
Q: What should I do if I don't know how to install the battery box after receiving it?
A: This kit is particularly easy to install and we have a detailed installation video as well as instructions. You can also contact us anytime
Q:Why has my logistics information not been updated?
A:The goods will be shipped by UPS or a local shipping company, but due to the tedious process of shipping across borders, the logistics information will not be updated for a while until the goods arrive in your country. It is only when the goods are picked up by the local carrier and ready for dispatch that the logistics status will be updated accordingly.
