SPECIFICATIONS

1 Audio Output: PHONE 3.5mm Stereo Mini Jack, audio monitoring with adjustable level

2 Audio Input: MIC 1~2 3.5mm Stereo Mini Jack, support MIC, MIC+power and Line

3 Video Outputs: OUT 1 Configurable among IN 1-4, UVC, SD card video player, PVW and PGM, Program Output by default OUT 2 Configurable, HDMI Multiview Monitoring Output by default USB 1 USB Type-C 2.0 for connecting to OBS, Zoom, Vmix etc. Support up to 1080p30 MJPEG

5 Video Inputs: IN 1~4 HDMI type A, 12bit YCC 4:2:2 or 8bit RGB 4:4:4, 2 channel embedded audio AUX Configurable between UVC input USB 2 (USB Type-C 2.0) and SD card video player

Analog Input: Unbalanced stereo

Analog Input Delay: 0-170ms

Audio Mixer: 2 Channel Analog Audio Inputs 4 Channel HDMI Embedded Audio Inputs 1 Channel AUX Embedded Audio Input 1 Channel PGM Audio Monitoring Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel Level and peak metering, plus audio adjustment: fader, balance, input and delay

Brand Name: OSEE

Color Space: Rec 709 Upstream Key 1 Downstream Key 1 Chroma Key 1 Luma Key 1 Transition 18 user selectable patterns with versatile modification Layer of the ME composition engine 6

Compatible device: Streaming Box,Action Cameras,PTZ Camera,Cameras,Game Consoles,Laptops,Tablets,Phones,Monitor

Consumption: 12W

Dimension (W*H*D): 252.4 49.3 107.3mm

Direct Streaming: Ethernet Supports 10/100/1000 BaseT and 3 simultaneous destinations for live streaming

Frame Rate and Format Converters: On all 4 HDMI inputs and AUX input

HDMI Input Resolutions from Computers: 1280x720p 50/59.94/60Hz 1920x1080p 23.98/24/25/29.97/30/50/59.94/60Hz 1920x1080i 50/59.94/60Hz

High-concerned chemical: None

Humidity: 10%~90% (No Condense)

Input Impedance: 12kOhm input impedance

Input Interface: HDMI,SDI,AUDIO

Input Voltage: External 12V DC

Macro: Up to 8 Macros, the Macros can be import from or export to SD card for sharing with others

Max Input Level: +6dBV

Mic Plug In Power: Available on both 3.5mm mini jack connections

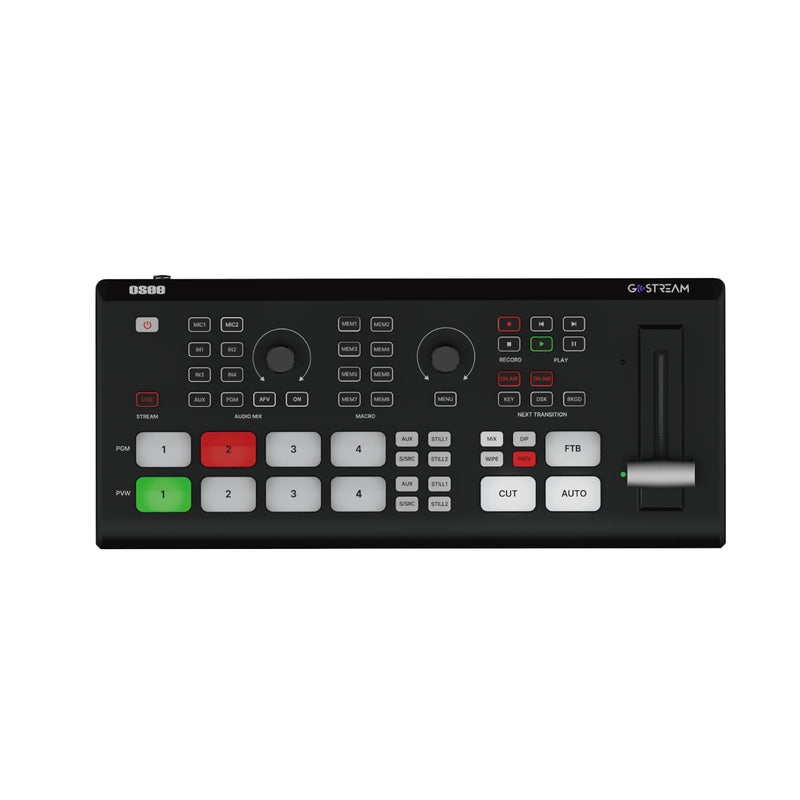

Model: GoStream Deck

Multiview Monitoring: PGM/PVW Windows Position Left/right configurable Info Display Program/Preview/HDMI IN 1~4/UVC/Still 1/Still 2/Source Label (UMD)/Tally/Marker/Audio Meter/Fade Level/Audio On and AFV Status/Recording/Streaming/Control Menu Video Standard 1080p24/25/30/50/60, all of the video outputs use the same output format

Number Of Channels: 8-Channel

Number of HDMI: 4

Number of SDI: 1

Origin: Mainland China

Output Interface: HDMI,AUDIO,USB

Playback: Playback high quality video up to 70mb/s, transition triggers automatic playback, finishing playback triggers the next transition, 3 playback modes including Repeat/Sequential/Play Once

Power Adaptor: EU Or US standard power adaptors included

Recording: High quality H.264 recording up to 70Mb/s, can be set to a different data rate as streaming Supports SD card formatted ExFAT (Windows/Mac)

SD Card Slot: For video playback, recording, still image upload, stream key import, macro import and export, firmware upgrade (check the requirement of SD card for high data rate up to 80Mb/s recording)

Software Control: Full control by built-in control menu (display on multiview) without the need of an additional PC

Storage Temperature: -10°C to 60°C (14°F~140°F)

Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet, up to 10mb/s

Support CUT hard cutting: Yes

Video Coding Range: Supports 0-1023 and 64-940 in 10 bit range on all of the HDMI input and output

Video Effects: Color Generator 2 on bus and 3 for dedicated effects Pattern Generator 2 PIP 1 Video Source Overlay on video or still Background Source Super Source 2 Video Sources Overlay on video or still Background Source Still Image Still generator 2 with fill and key Still storage 32 with fill and key for each still generator Format PNG

Video Input Formats: 720p50/59.94/60 1080i50/59.94/60 1080p23.98/24/25/29.97/30/50/59.94/60

Video Input Re-Sync (Frame Synchronizer): On all 4 HDMI inputs and AUX input

Video Output/Streaming Formats: 1080p24/25/30/50/60

Video Sampling: Supports both YCC 4:2:2 12bit and RGB 4:4:4 8bit on all of the HDMI input and output

Weight: 500g

Working Temperature: 5°C to 40°C (41°F~104°F)
