SPECIFICATIONS

Battery Included: No

Brand Name: SupTronics

Built-on platform: Raspberry Pi 4 Model B

High-concerned chemical: None

Model Number: X632 V1.2

Origin: Mainland China

X632-IPKVM-DIY-KIT : Raspberry Pi 4B NOT included

X632-Assembled Kit-A : Raspberry Pi 4B included

X632-Assembled Kit-B : Raspberry Pi 4B included

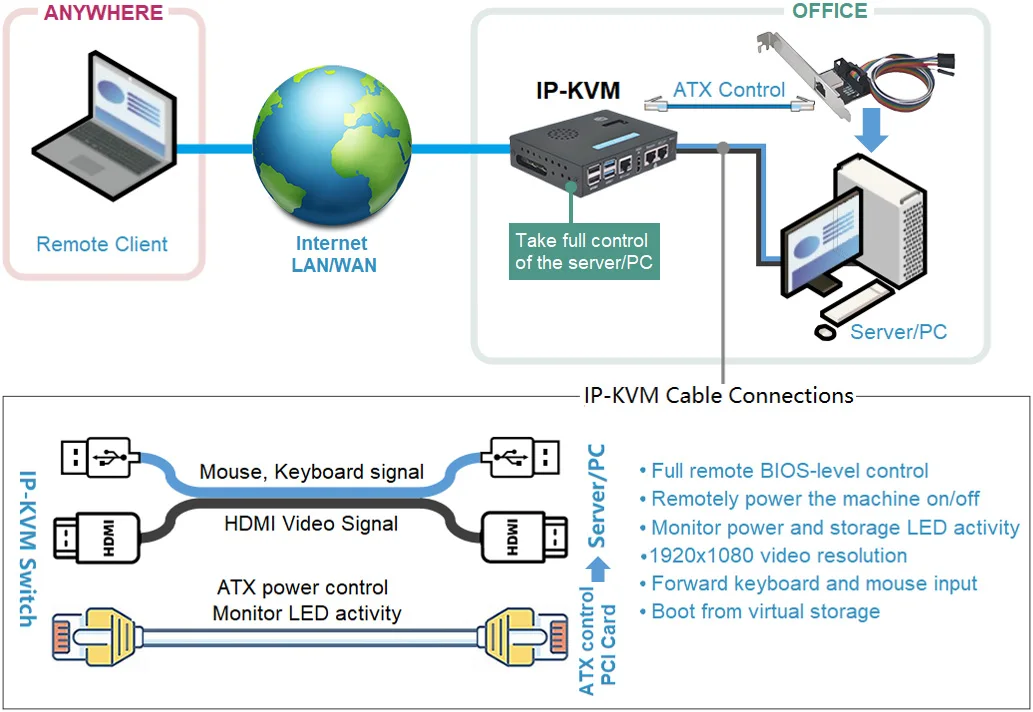

Remote Access with KVM Over IP
More powerful than any other KVM-over-IP switch, it supports unobstructed, anytime/anywhere, BIOS-level remote access to servers, PCs, and workstations.

 Product Overview

The X632, a KVM-over-IP switch built on the Raspberry Pi4 Model B platform, provides a new level of full HD performance for remote management. More powerful than any other KVM-over-IP switch, it supports unobstructed, anytime/anywhere, BIOS-level remote access to servers, PCs, and workstations. This unprecedented access level ensures that you can maintain control and troubleshoot issues no matter where you are, making it an ideal solution for today’s increasingly remote and distributed work environments.

This IP KVM Switch enables BIOS-level KVM control, allowing you to reboot, monitor the entire boot process, and interact with your connected system with ease. The integrated remote ATX power control lets you power the machine on/off, reset it, and remotely monitor power and storage LED activity.

IP KVM Switches are the perfect solution for managing mission-critical systems. With BIOS-level access, you can efficiently troubleshoot complex issues and restore service before downtime impacts productivity. As no server-resident software is required, server performance and reliability remain uncompromised.

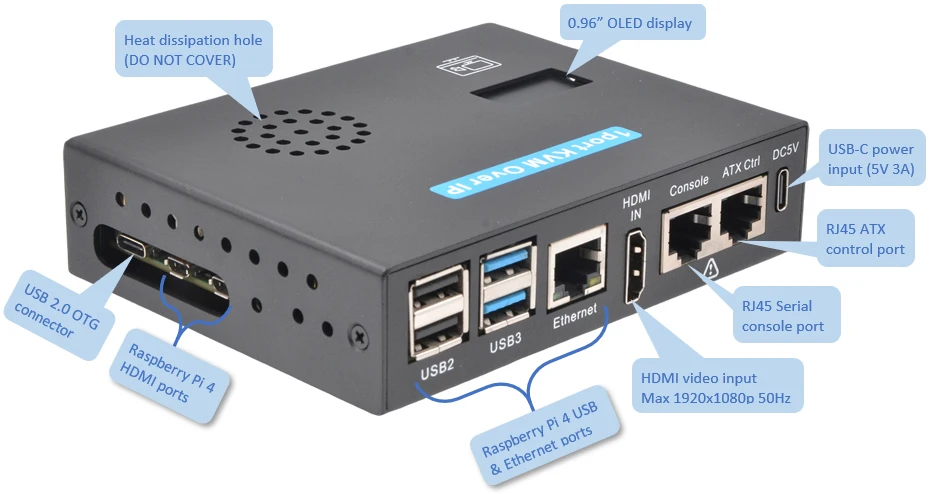

 Product Features

- Built on the Raspberry Pi4 Model B platform

- Full remote BIOS-level control - Access the BIOS and have full control over the keyboard and mouse

- Supports HDMI input resolutions up to 1920x1080 at 50Hz

- Supports HDMI audio capture

- HDMI Full HD capture based on the TC358743 chip

- OTG Keyboard & mouse; Mass Storage Drive emulation

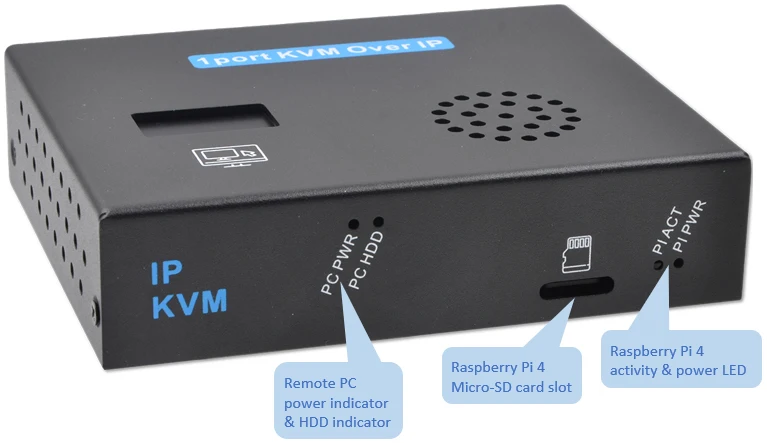

- 0.96-inch OLED display featuring name, IP address, temperature, CPU load, and uptime

- Hardware Real-Time Clock (RTC) with CR1220 coin battery socket

- Compatible with PC, Mac, Linux, and Sun Systems

- Supports ATX control for powering the machine on/off and resetting it - X630-A5 ATX board required

- Supports RS232 serial console port for managing IPKVM OS or connecting with the server

- PoE Supported – Power over Ethernet for simplified installation

- Supports powering via USB-C

- Dual HDMI output ports supporting 4K display

- Equipped with a cooling fan to dissipate heat from the Raspberry Pi CPU

 Instructions for Getting Started

Product introduction

http://suptronics.com/ite/x632v1.2.html

Hareware overview and assembly

http://suptronics.com/ite/x632_v1.2-hardware.html

Operating system installation and setting

http://suptronics.com/ite/x632_v1.2-software.html

 Any problem ?

support@suptronics.com

 Buying Options

X632-IPKVM-DIY-KIT

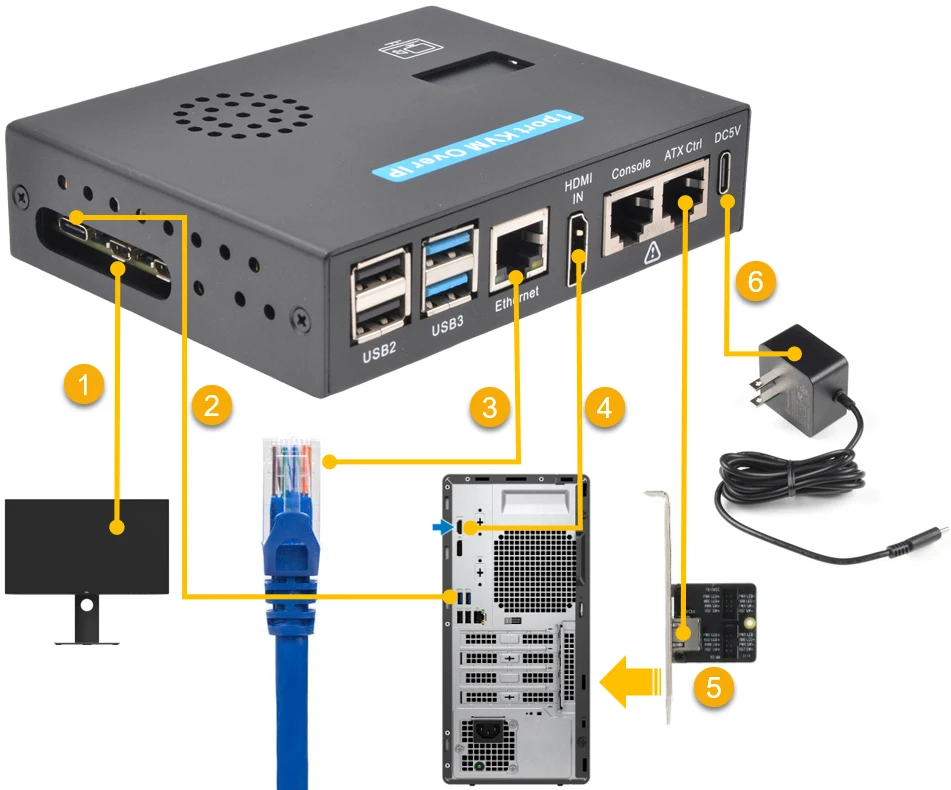

To build a complete KVM-over IP switch, you will need to:

1) Prepare the necessary hardware components: Raspberry Pi 4B, Micro SD card, HDMI cables and Ethernet cables. These items are not supplied with the kit.

2) Perform the hardware assembly.

3) Install the operating system and configure the settings.

X632-Assembled Kit A

This kit includes all the required parts and is fully assembled. USB-C power supply not included, POE supported.

X632-Assembled Kit B

This kit includes all the required parts and is fully assembled. Power supply included but also supports Power over Ethernet (PoE).

 Package Contents

X632 IPKVM DIY Kit

- X632 metal enclosure x1

- X632 IPKVM expansion board x1

- USB-C to USB-A OTG cable x1

- X630-A5 ATX power control PCI card x1

- Screw pack x1

Note:  Raspberry Pi 4 not included.

X632 IPKVM Assembled Kit A

- X632 metal enclosure x1

- X632 IPKVM expansion board x1

- USB-C to USB-A OTG cable x1

- Raspberry Pi 4 B RAM2G x1

- Micro SD card 32GB x1

- X630-A5 ATX power control PCI card x1

Note:  The Raspberry Pi 4 and the MicroSD card with the OS already flashed are installed inside the case.

X632 IPKVM Assembled Kit B

- X632 metal enclosure x1

- X632 IPKVM expansion board x1

- USB-C to USB-A OTG cable x1

- Raspberry Pi 4 B RAM2G x1

- Micro SD card 32GB x1

- X630-A5 ATX power control PCI card x1

- USB-C 15W Raspberry Pi official power supply x1

Note: The Raspberry Pi 4 and the MicroSD card with the OS already flashed are installed inside the case.
